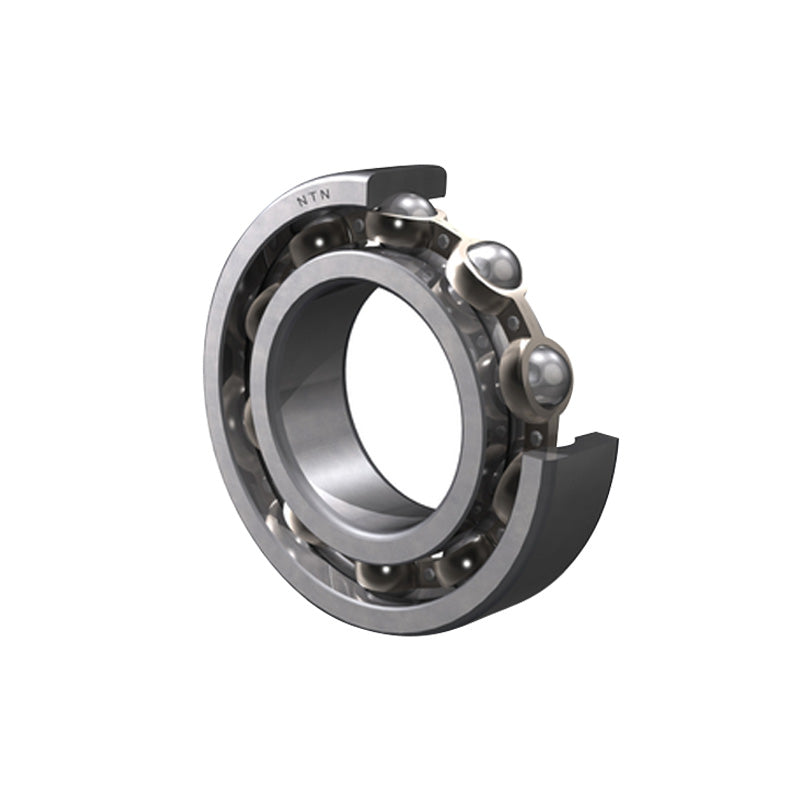

NTN 6022C3 Open Type Deep Groove Ball Bearing 110x170x28mm
NTN 6022C3 Open Type Deep Groove Ball Bearing 110x170x28mm
Regular price
$302.38
ex VAT
Regular price
Sale price
$302.38
ex VAT
Equivalent to: 9122KC3 9122C3 122KSC3 6122C3 3L22C3 EL110C3 ELL110C3
In stock
Price Break
3+
$143.39
5+
$135.33
10+
$133.72
25+
$132.11
49+
$130.50
74+
$128.89
99+
$120.83
199+
$119.22
249+
$117.61
499+
$116.00
999+
$112.78
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 170mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 91 kN |
| C<sub>or</sub> | 73 kN |
| C<sub>u</sub> | 4.55 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 3800 rpm |
| Oil | 4500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 119mm |
| D<sub>a</sub> Max. | 161mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.96 kg |
