SKU: 6017NR/C3-SKF

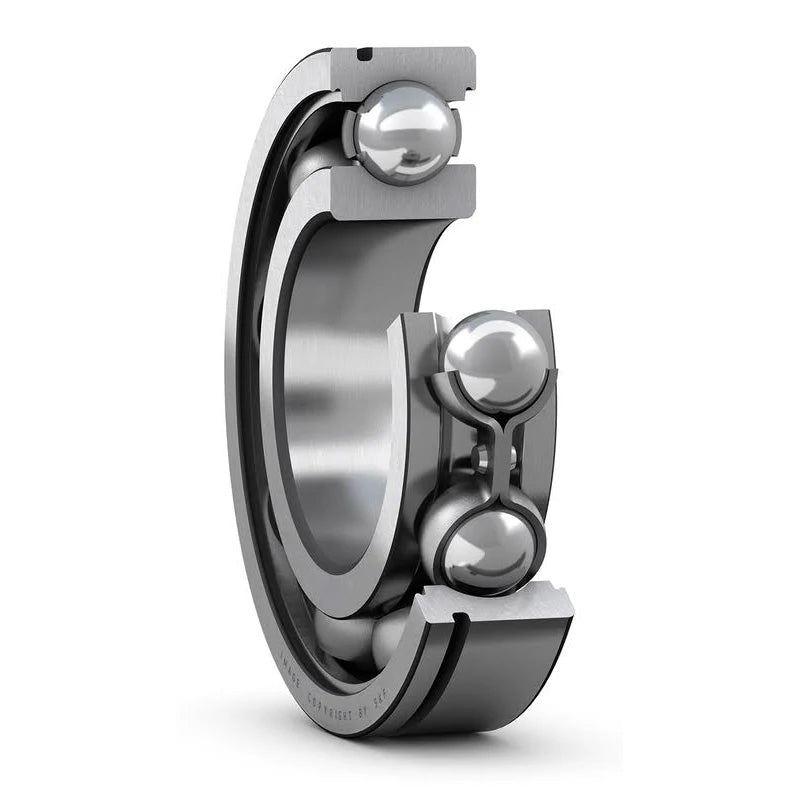

SKF 6017NRC3 Open Type Snap Ring Deep Groove Bearing 85x130x22mm
SKF 6017NRC3 Open Type Snap Ring Deep Groove Bearing 85x130x22mm
Out of stock
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 85mm |
|---|---|
| D | 130mm |
| B | 22mm |
| Dynamic load C | 52 kN |
| Static load Co | 43 kN |
| Fatigue load limit Pu | 1.76 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 0.9kg |
| Snap ring | SP 130 |
| d1 | 99.4mm |
| D2 | 120mm |
| D3 | 125.22mm |
| D4 | 139.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 2.87mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 92mm |
| Da max | 123mm |
| Db min | 141mm |
| ba min | 3.5mm |
| Ca max | 5.69mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
