SKU: 6012LLU/5K-NTN

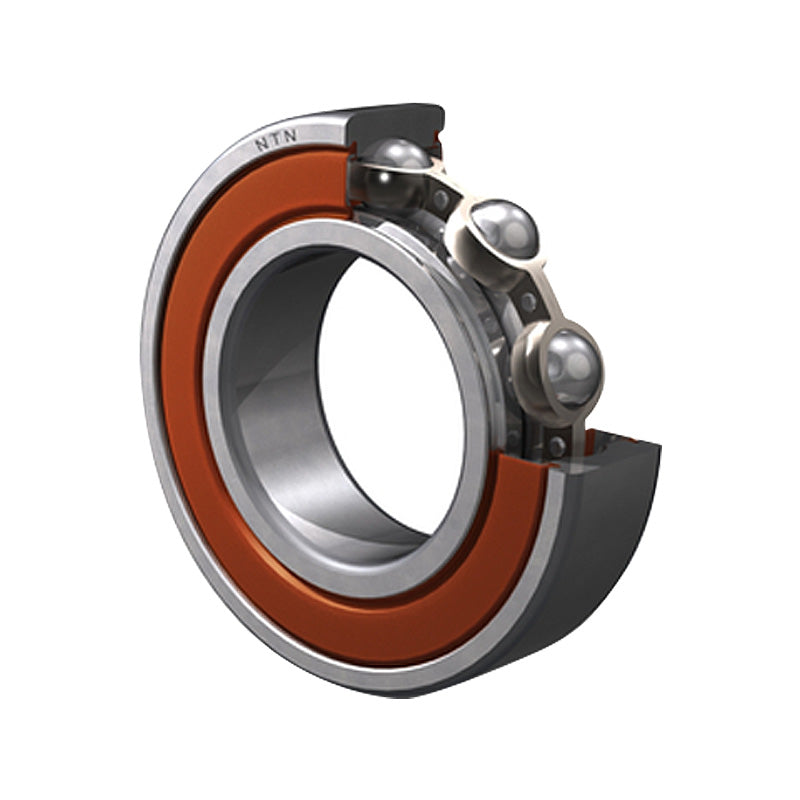

NTN 6012LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 60x95x18mm
Equivalent to: 6012LLUCM 6012NSE 6012DU 6012RS 6012RSH 6012P 6012RSR 6012LU 60122NSE 6012DDU 60122RS 6012-2RS 60122RS1 60122RSH 6012PP 60122RSR 6012LLU 6012RS2 60122RS2 60122RSL 6012LFS 6012EE EL602RS 9112PP 112KSZZ 993L12 6112KK 10L60
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 95mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 23.2 kN |
| C<sub>u</sub> | 1.73 kN |
| f<sub>0</sub> | 15.6 kN |
| Speed | 4100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 66.5mm |
| d<sub>a</sub> Max. | 69mm |
| D<sub>a</sub> Max. | 88.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.414 kg |
