SKU: 6011NR-NTN

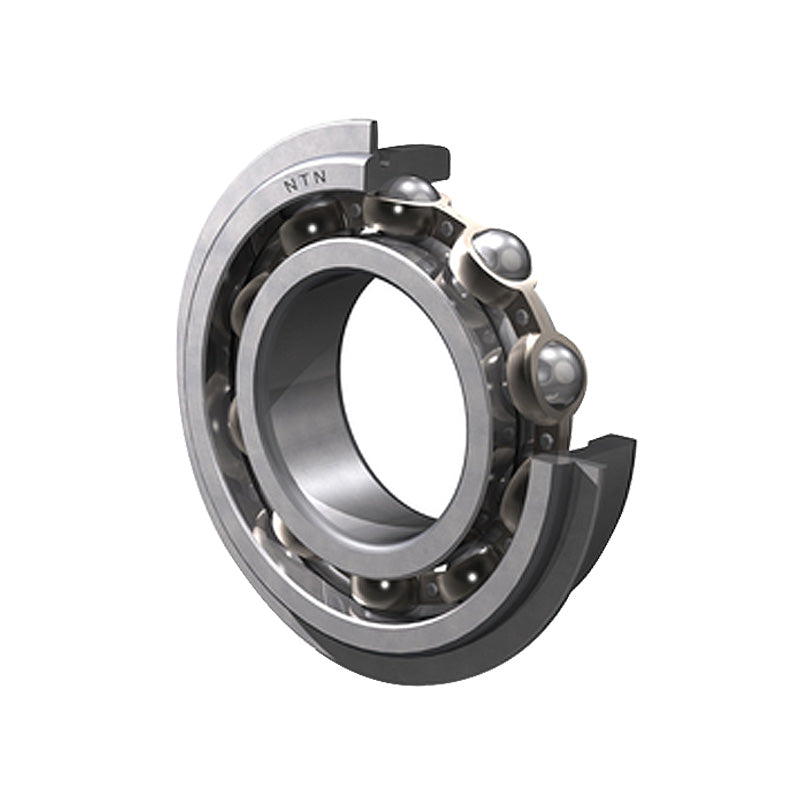

NTN 6011NR Open Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
NTN 6011NR Open Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
Regular price
$105.46
ex VAT
Regular price
Sale price
$105.46
ex VAT
Equivalent to: 6011NRCM 9111KG 111KSG 43L11
In stock
Price Break
3+
$50.01
5+
$47.20
10+
$46.64
25+
$46.08
49+
$45.51
74+
$44.95
99+
$42.14
199+
$41.58
249+
$41.02
499+
$40.46
999+
$39.33
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 90mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 31.5 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.62 kN |
| f<sub>0</sub> | 15.3 kN |
| Grease | 7700 rpm |
| Oil | 9000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 86.79mm |
| a Max. | 2.87mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 96.5mm |
| f Max. | 2.46mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 61.5mm |
| d<sub>a</sub> Max. | 64mm |
| D<sub>a</sub> Max. | 83.5mm |
| D<sub>X</sub> (approx) | 98mm |
| C<sub>Y</sub> Max. | 5mm |
| C<sub>Z</sub> Min. | 2.5mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.388 kg |
