SKU: 6008LLU/5K-NTN

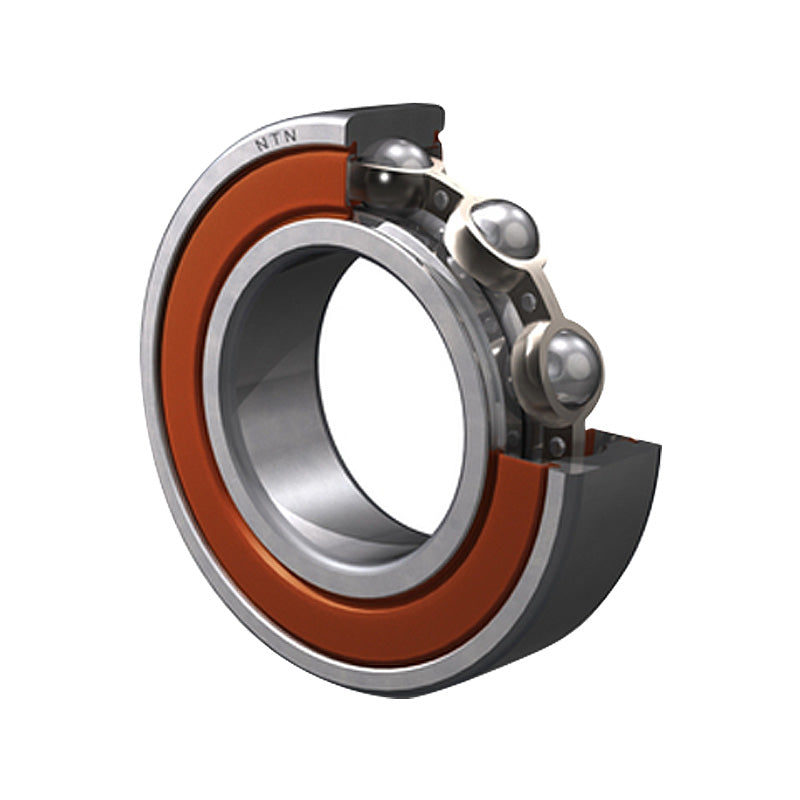

NTN 6008LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 40x68x15mm
Equivalent to: 6008LLUCM 6008NSE 6008DU 6008RS 6008RSH 6008P 6008RSR 6008LU 60082NSE 6008DDU 60082RS 6008-2RS 60082RS1 60082RSH 6008PP 60082RSR 6008LLU 6008RS2 60082RS2 60082RSL 6008LFS 6008EE EL402RS 9108PP 108KSZZ 993L08 6108KK 10L40
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 68mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 18.6 kN |
| C<sub>or</sub> | 11.5 kN |
| C<sub>u</sub> | 0.89 kN |
| f<sub>0</sub> | 15.2 kN |
| Speed | 6100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 45mm |
| d<sub>a</sub> Max. | 47mm |
| D<sub>a</sub> Max. | 63mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.19 kg |
