SKU: 6007N-NTN

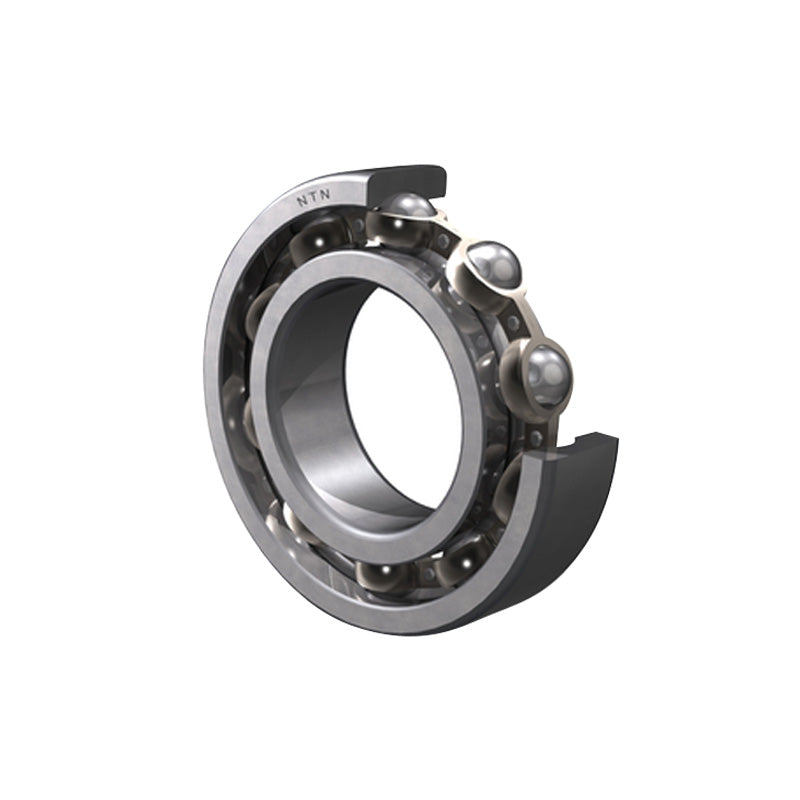

NTN 6007N Open Type Deep Groove Ball Bearing with Snap Ring Groove 35x62x14mm
NTN 6007N Open Type Deep Groove Ball Bearing with Snap Ring Groove 35x62x14mm
Regular price
$40.43
ex VAT
Regular price
Sale price
$40.43
ex VAT
Equivalent to: 6007NCM
In stock
Price Break
3+
$19.17
5+
$18.09
10+
$17.88
25+
$17.66
49+
$17.45
74+
$17.23
99+
$16.16
199+
$15.94
249+
$15.72
499+
$15.51
999+
$15.08
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings with Snap Ring Groove: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. These bearings have a groove on the outside diameter to allow the use of a snap ring. (Not Supplied).
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 12000 rpm |
| Oil | 14000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 59.61mm |
| a Max. | 2.08mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| d<sub>a</sub> Max. | 42mm |
| D<sub>a</sub> Max. | 57mm |
| D<sub>X</sub> (approx) | 68.5mm |
| C<sub>Y</sub> Max. | 3.4mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.155 kg |
