SKU: 6007-NACHI
NACHI 6007 Open Deep Groove Ball Bearing 35x62x14mm
NACHI 6007 Open Deep Groove Ball Bearing 35x62x14mm
Regular price
$16.20
ex VAT
Regular price
Sale price
$16.20
ex VAT
In stock
Price Break
5+
$7.68
9+
$7.25
19+
$7.16
29+
$7.08
49+
$6.99
74+
$6.90
99+
$6.47
199+
$6.39
249+
$6.30
499+
$6.21
999+
$6.04
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

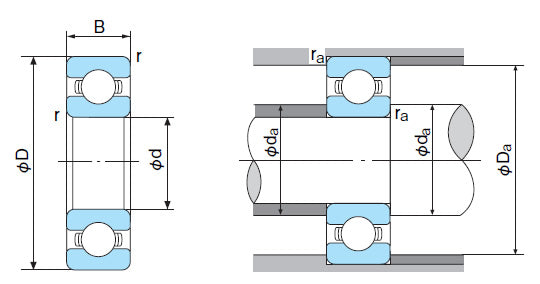

| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 62mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 16000 kN |
| Static load | 10300 kN |
| Max speed in oil | 14000 rpm |
| Max speed in grease | 12000 rpm |
| da min | 40mm |
| Da max | 57mm |
| ra max | 1mm |
| Weight | 0.156 kg |
