SKU: 6005ZZNR/5K-NTN

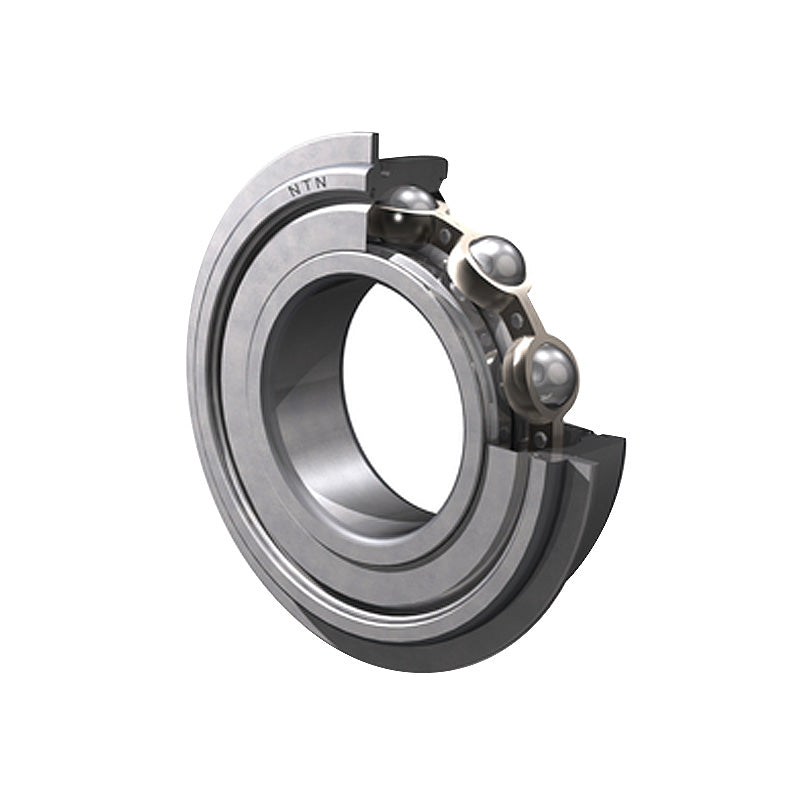

NTN 6005ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 25x47x12mm
Equivalent to: 6005ZZNRCM 6005ZZNR 6005ZZNR 60052ZNR 6005ZZNR 60052ZRNR 6005ZZENR 6005FFNR 6005DDNR 6005DDCNR 6005KDDCNR EL252ZNR EL25ZZNR 9105KDDG 4773L05 105KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 47mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 11.2 kN |
| C<sub>or</sub> | 5.85 kN |
| C<sub>u</sub> | 0.38 kN |
| f<sub>0</sub> | 14.5 rpm |
| Grease | 15000 rpm |
| --- | Fitting Dimensions |
| Oil | 18000 rpm |
| D<sub>1</sub> Max. | 44.6mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
