SKU: 6005LLUC4/5K-NTN

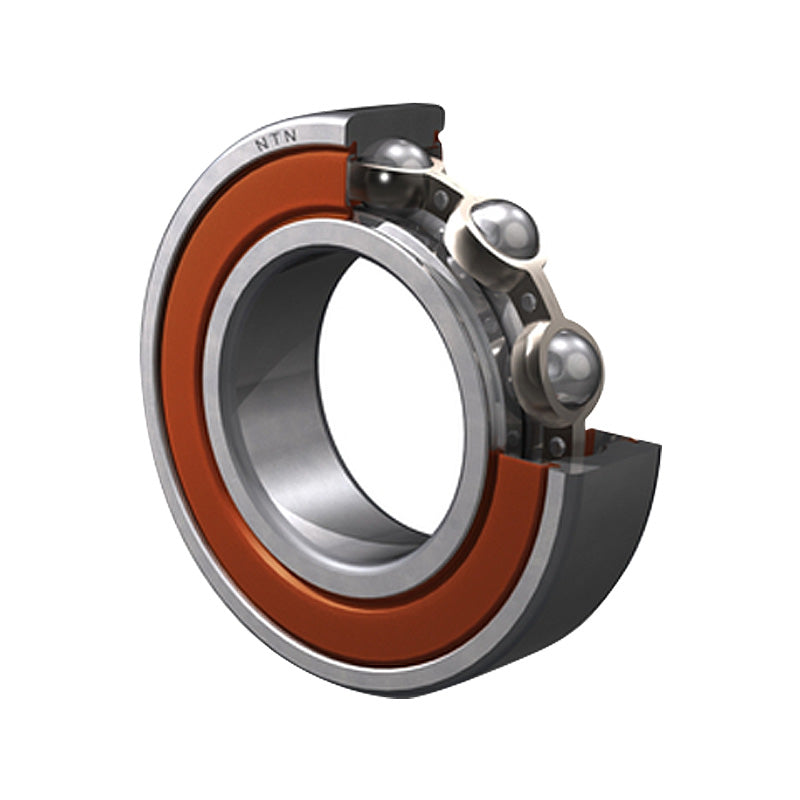

NTN 6005LLUC4/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 25x47x12mm
Equivalent to: 6005NSEC4 6005DUC4 6005RSC4 6005RSHC4 6005PC4 6005RSRC4 6005LUC4 60052NSEC4 6005DDUC4 60052RSC4 6005-2RSC4 60052RS1C4 60052RSHC4 6005PPC4 60052RSRC4 6005LLUC4 6005RS2C4 60052RS2C4 60052RSLC4 6005LFSC4 6005EEC4 EL252RSC4 9105PPC4 105KSZZC4 993L05C4 6105KKC4 10L25C4
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 47mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 11.2 kN |
| C<sub>or</sub> | 5.85 kN |
| C<sub>u</sub> | 0.38 kN |
| f<sub>0</sub> | 14.5 kN |
| Speed | 9400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 29mm |
| d<sub>a</sub> Max. | 30.5mm |
| D<sub>a</sub> Max. | 43mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.08 kg |
