SKU: 6004LLUC3/5K-NTN

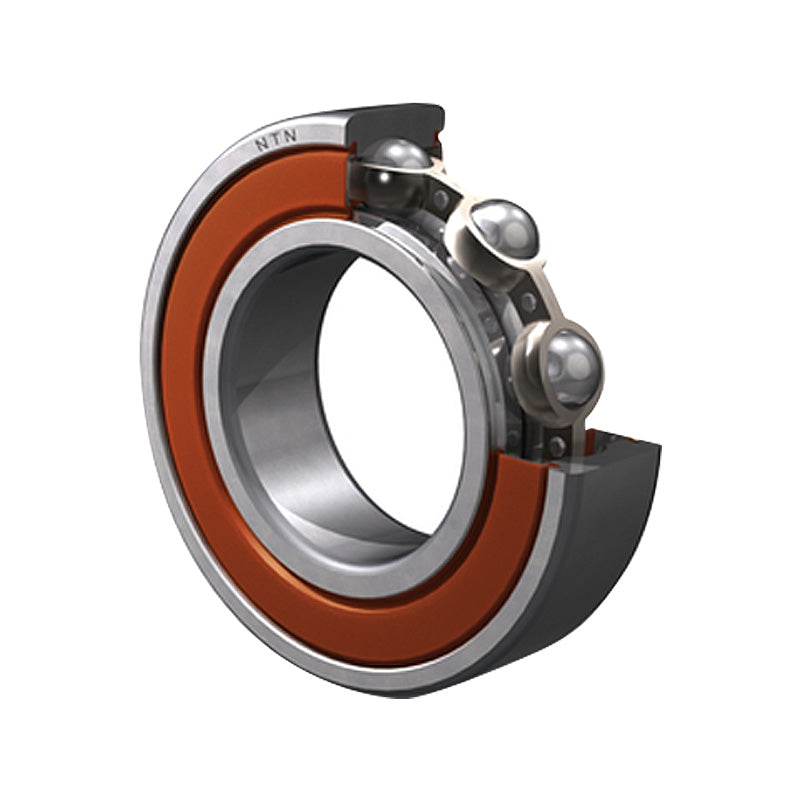

NTN 6004LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 20x42x12mm
Equivalent to: 6004NSEC3 6004DUC3 6004RSC3 6004RSHC3 6004PC3 6004RSRC3 6004LUC3 60042NSEC3 6004DDUC3 60042RSC3 6004-2RSC3 60042RS1C3 60042RSHC3 6004PPC3 60042RSRC3 6004LLUC3 6004RS2C3 60042RS2C3 60042RSLC3 6004LFSC3 6004EEC3 EL202RSC3 9104PPC3 104KSZZC3 993L04C3 6104KKC3 10L20C3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 42mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.4 kN |
| C<sub>or</sub> | 5.05 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 13.9 kN |
| Speed | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 24mm |
| d<sub>a</sub> Max. | 26mm |
| D<sub>a</sub> Max. | 38mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.069 kg |
