SKU: 6004LLU/5K-NTN

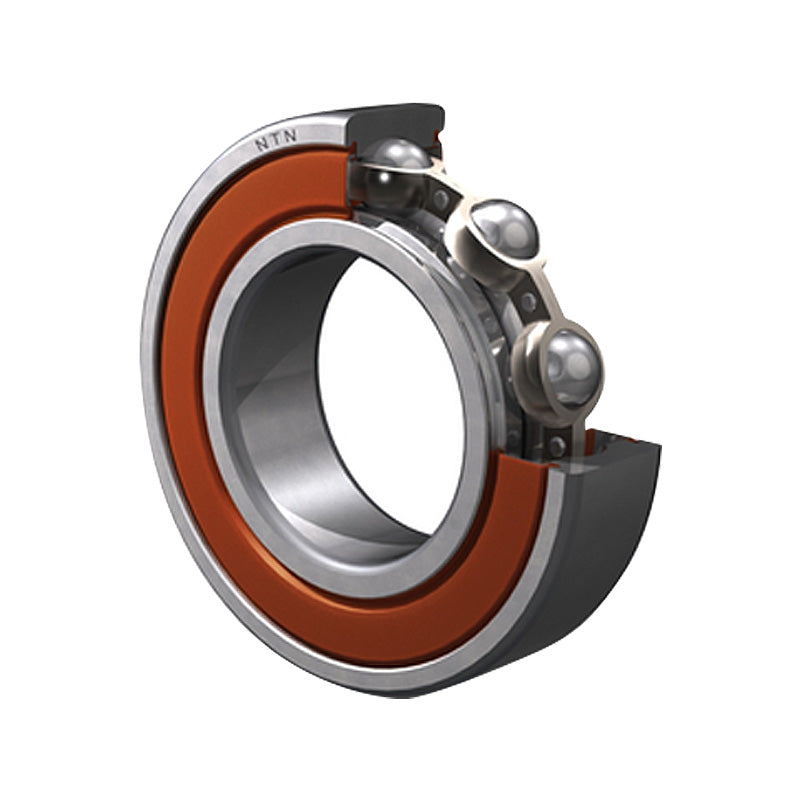

NTN 6004LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 20x42x12mm
Equivalent to: 6004LLUCM 6004NSE 6004DU 6004RS 6004RSH 6004P 6004RSR 6004LU 60042NSE 6004DDU 60042RS 6004-2RS 60042RS1 60042RSH 6004PP 60042RSR 6004LLU 6004RS2 60042RS2 60042RSL 6004LFS 6004EE EL202RS 9104PP 104KSZZ 993L04 6104KK 10L20
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 42mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.4 kN |
| C<sub>or</sub> | 5.05 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 13.9 kN |
| Speed | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 24mm |
| d<sub>a</sub> Max. | 26mm |
| D<sub>a</sub> Max. | 38mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.069 kg |
