SKU: 6003LLU/5K-NTN

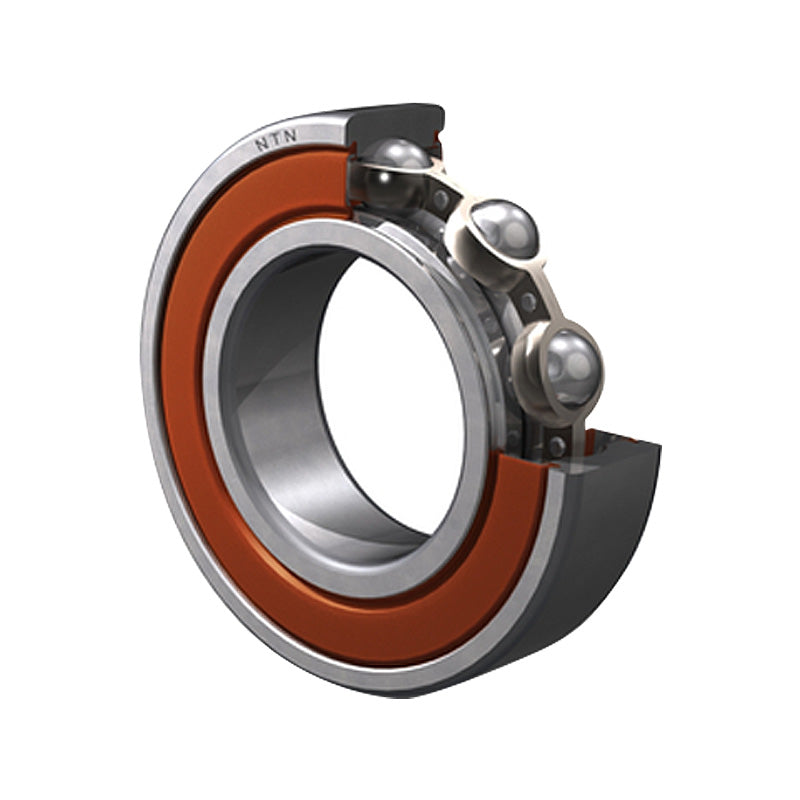

NTN 6003LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 17x35x10mm
Equivalent to: 6003LLUCM 6003NSE 6003DU 6003RS 6003RSH 6003P 6003RSR 6003LU 60032NSE 6003DDU 60032RS 6003-2RS 60032RS1 60032RSH 6003PP 60032RSR 6003LLU 6003RS2 60032RS2 60032RSL 6003LFS 6003EE EL172RS 9103PP 103KSZZ 993L03 6103KK 10L17
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 35mm |
| B | 10mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.55 kN |
| C<sub>or</sub> | 3.35 kN |
| C<sub>u</sub> | 0.243 kN |
| f<sub>0</sub> | 13.6 kN |
| Speed | 14000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 19mm |
| d<sub>a</sub> Max. | 21mm |
| D<sub>a</sub> Max. | 33mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.039 kg |
