SKU: 6002LLUC4/5K-NTN

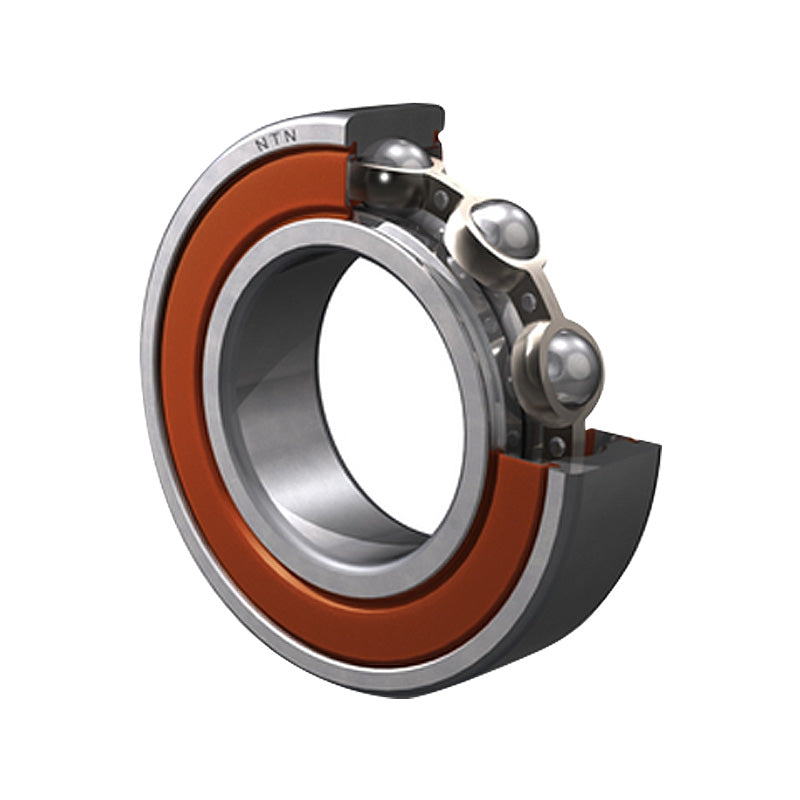

NTN 6002LLUC4/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 15x32x9mm
Equivalent to: 6002NSEC4 6002DUC4 6002RSC4 6002RSHC4 6002PC4 6002RSRC4 6002LUC4 60022NSEC4 6002DDUC4 60022RSC4 6002-2RSC4 60022RS1C4 60022RSHC4 6002PPC4 60022RSRC4 6002LLUC4 6002RS2C4 60022RS2C4 60022RSLC4 6002LFSC4 6002EEC4 EL152RSC4 9102PPC4 102KSZZC4 993L02C4 6102KKC4 10L15C4
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 32mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 6.2 kN |
| C<sub>or</sub> | 2.84 kN |
| C<sub>u</sub> | 0.199 kN |
| f<sub>0</sub> | 13.9 kN |
| Speed | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| d<sub>a</sub> Max. | 19mm |
| D<sub>a</sub> Max. | 30mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.03 kg |
