SKU: 6000C3-NTN

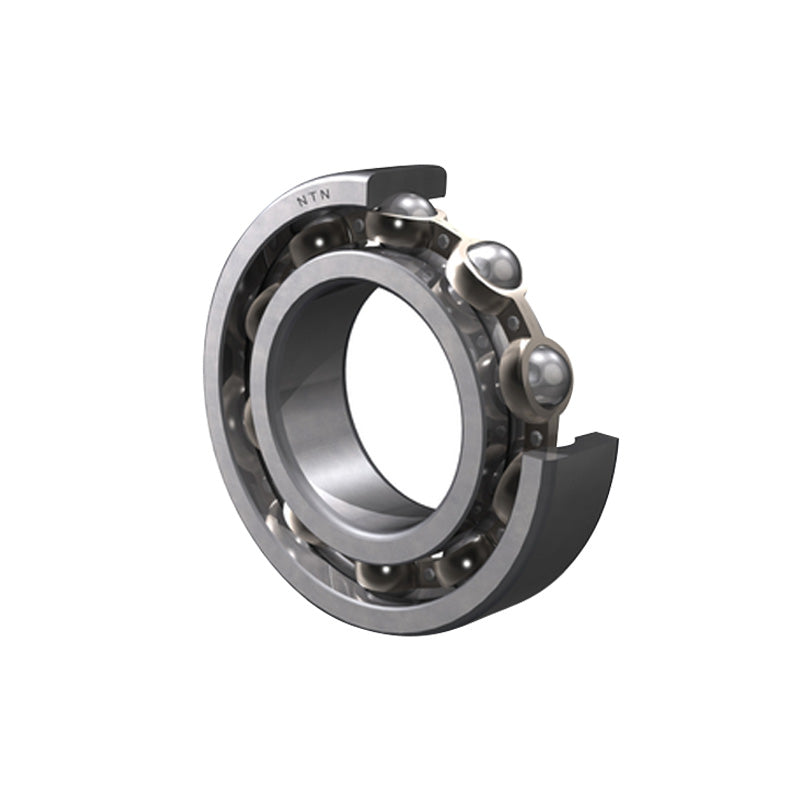

NTN 6000C3 Open Type Deep Groove Ball Bearing 10x26x8mm
NTN 6000C3 Open Type Deep Groove Ball Bearing 10x26x8mm
Regular price
$8.88
ex VAT
Regular price
Sale price
$8.88
ex VAT
Equivalent to: 9100KC3 9100C3 100KSC3 6100C3 3L00C3 EL10C3 ELL10C3
In stock
Price Break
3+
$4.21
5+
$3.97
10+
$3.93
25+
$3.88
49+
$3.83
74+
$3.78
99+
$3.55
199+
$3.50
249+
$3.45
499+
$3.41
999+
$3.31
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 26mm |
| B | 8mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.05 kN |
| C<sub>or</sub> | 1.96 kN |
| C<sub>u</sub> | 0.138 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 29000 rpm |
| Oil | 34000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 12mm |
| D<sub>a</sub> Max. | 24mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.019 kg |
