SKU: 60/22NC3-NSK
NSK 60/22NC3 Open Type Deep Groove Ball Bearing With Snap Ring Groove 22x44x12mm
NSK 60/22NC3 Open Type Deep Groove Ball Bearing With Snap Ring Groove 22x44x12mm
Regular price
$17.92
ex VAT
Regular price
Sale price
$17.92
ex VAT
In stock
Price Break
4+
$8.50
10+
$8.02
20+
$7.92
30+
$7.83
50+
$7.73
75+
$7.64
100+
$7.16
200+
$7.06
250+
$6.97
500+
$6.87
1000+
$6.68
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring Groove: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring groove is around the outside of the bearing and is offset to one side. Snap ring not included |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 44mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring

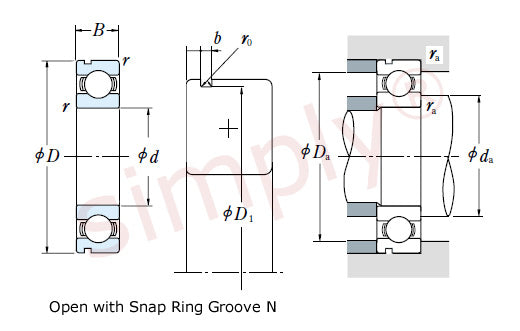

Technical
Technical
| d | 22mm |
|---|---|
| D | 44mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9400 N (960 kgf) |
| Static load Cor | 5050 N (515 kgf) |
| Factor | 14 |
| Speed in grease | 17000 rpm |
| Speed in oil | 20000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 41.75mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 48.3mm |
| f max | 1.12mm |
| da2 min | 26mm |
| da2max | 26.5mm |
| Da2max | 40mm |
| ra max | 0.6mm |
| Dx min | 49mm |
| Cy max | 2.9mm |
| Weight | 0.074 kg |
