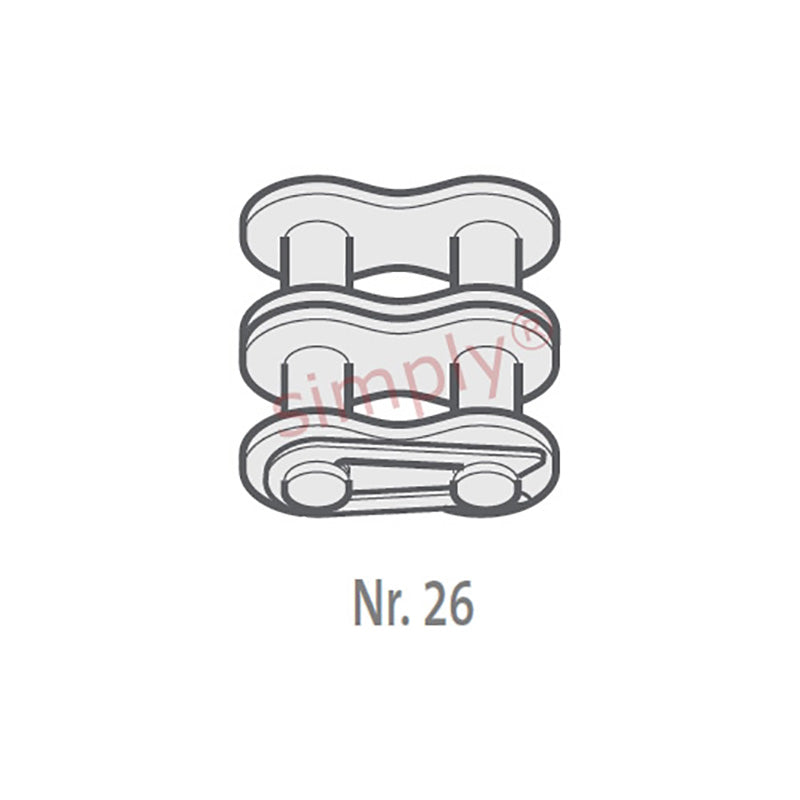

• Renold Synergy 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
1 1

SKU: 60-2-SYN-NO26-RENOLD

Renold Synergy 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch

Renold Synergy 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
$46.02 ex VAT
$46.02 ex VAT
Sale Sold out

In stock

Price Break
2+ $21.82
5+ $20.60
10+ $20.35
29+ $20.11
49+ $19.86
75+ $19.62
100+ $18.39
200+ $18.15
250+ $17.90
500+ $17.66
1000+ $17.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO26D_DESC
Brand / Quality:
Renold - High Quality
Pitch:
19.05mm = 0.75 (3/4) inch
Technical
Pitch (A) 0.75 inch
Pitch (A) 19.05mm
Inside Width min (B) 12.57mm
Roller Diameter max (C) 11.91mm
Plate Height max (D) 17.5mm
Plate Width Inner max (E) 2.45mm
Plate Width Outer max (F) 2.45mm
Pin Diameter max (G) 5.94mm
Pin Length max (H2) 48.1mm
Connecting Link Extension max (J) 2.6mm
Transverse Pitch nom (K) 22.78mm
ISO606 Tensile Strength min 62600 N
Weight 0.01kg/m
