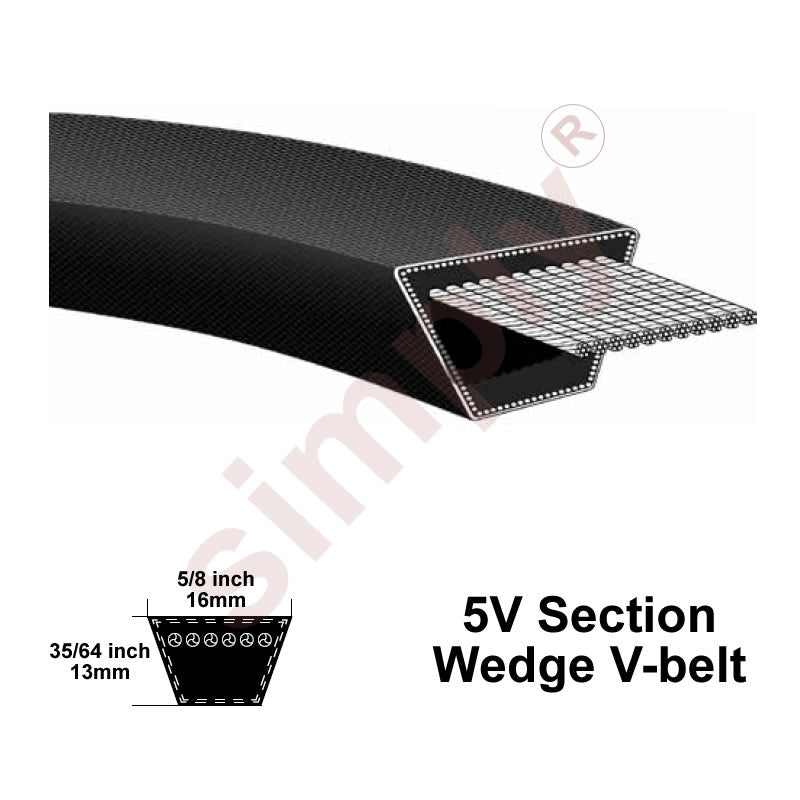

5V1700 Pix Narrow Profile V-Belt

5V Wedge Type Cogged V belts: Narrow profile envelope construction v belts for compact, high power drives and high shock loading on short centers and small diameters. Ideal for drive designs that need to be kept compact or heavy-duty drives where space limitation is a factor.
Benefits: Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Pix - High Quality

Belt Number:

5V1700

Inside Length Approx:

4247mm = 167.2 inch

Outside Length Approx:

4320mm = 170 inch

Belt Width Approx:

15.87mm = 5/8 inch

Belt Depth Approx:

13.89mm = 35/64 inch

Belt Datum Length Approx:

4288mm = 168.82 inch
