SKU: 570-803A

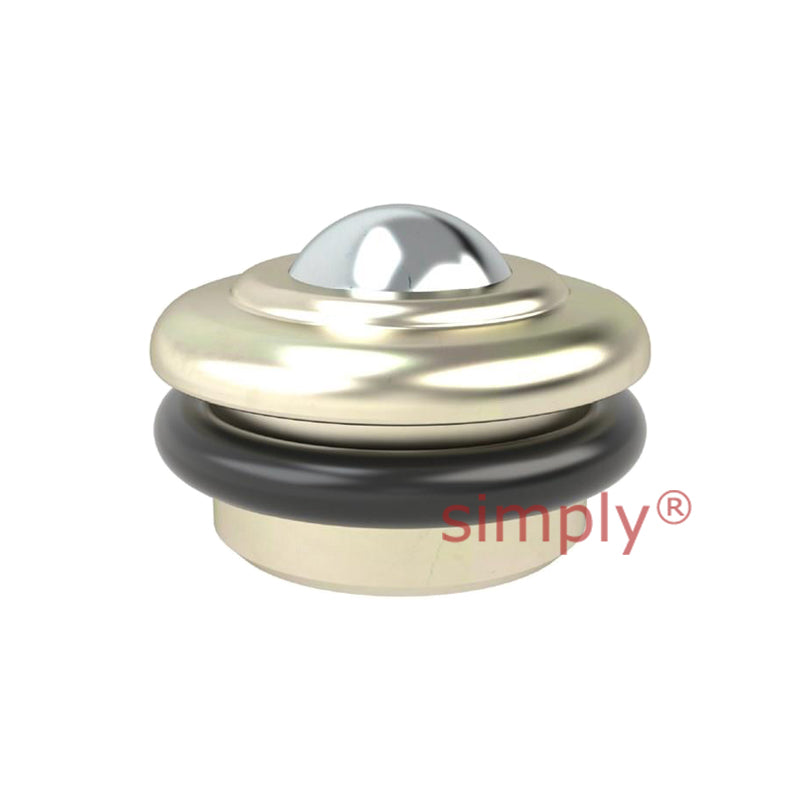

High-Performance Medium Duty Ball Transfer Unit with O-Ring with 23mm Steel Ball - Load Capacity 167kg - Allow 2-3 Days
- Regular price
- $102.02 ex VAT
- Sale price
- $102.02
- Regular price
-
Not in stock
Quantity Price Breaks
4
$90.80
9
$85.70
14
$84.68
19
$83.66
49
$82.64
74
$81.62
99
$76.52
199
$75.49
249
$74.47
499
$73.45
999
$71.41
SKU:
570-803A
High-Performance Medium Duty Ball Transfer Unit with O-Ring with 23mm Steel Ball - Load Capacity 167kg - Allow 2-3 Days
- Regular price
- $102.02 ex VAT
- Sale price
- $102.02
- Regular price
-
Description
GESTV0CWNP
This ball transfer unit is supplied with an o-ring. The inclusion of an O-ring provides enhanced sealing and protection against contaminants, ensuring optimal performance and longevity in challenging environments.
Technical

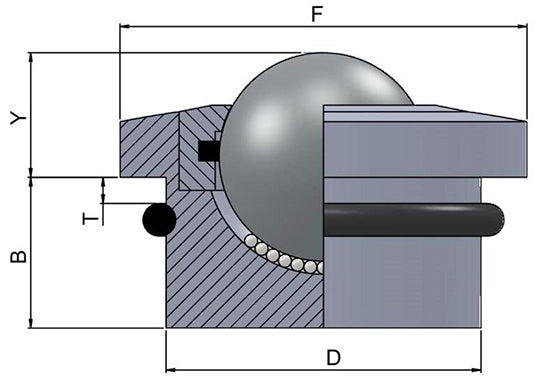

| --- | = | Dimensions |
| Ball Diameter | = | 30.2mm |
| T | = | 4mm |
| B | = | 23mm |
| D | = | 45mm |
| Y | = | 13.8mm |
| F | = | 55mm |
| Total Height | = | 36.8mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 167 kg |
| Weight | = | 0.36 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
