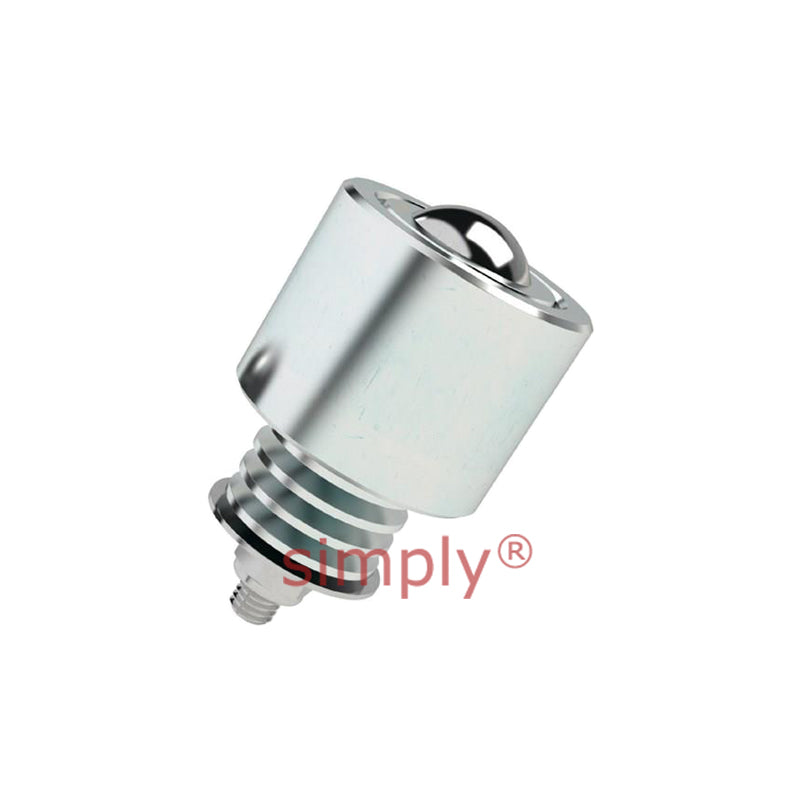

• High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1525kg - Allow 2-3 Days
1 1

SKU: 570-521A

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1525kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1525kg - Allow 2-3 Days
$1,269.18 ex VAT
$1,269.18 ex VAT
Sale Sold out

In stock

Price Break
4+ $590.04
9+ $556.89
14+ $550.27
19+ $543.64
49+ $537.01
74+ $530.38
99+ $497.23
199+ $490.60
249+ $483.97
499+ $477.34
999+ $464.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YO6RLGFF6Y
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
D 101.6mm
R 101.6mm
X 171.5mm
Y 200.8mm
Z 43.2mm
Max Deflection 6.3mm
--- Loads and Speeds
Supports Load 1525kg
Load to Max Deflection 2033kg
Weight 9.1 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
