• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 119kg - Allow 2-3 Days
1 1

SKU: 570-510A

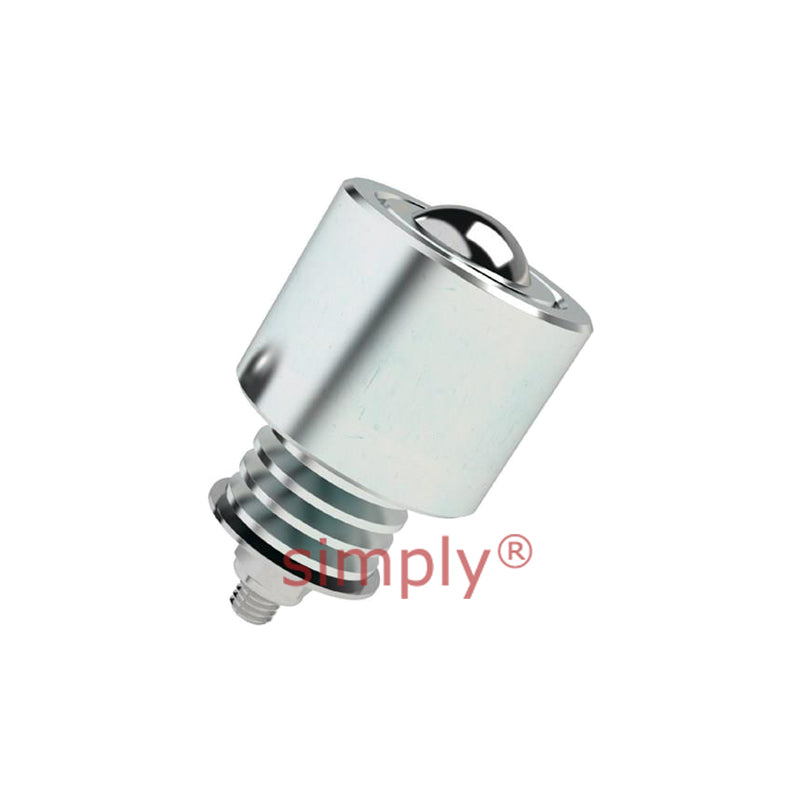

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 119kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 119kg - Allow 2-3 Days
$217.09 ex VAT
$217.09 ex VAT
Sale Sold out

In stock

Price Break
4+ $100.93
9+ $95.26
14+ $94.12
19+ $92.99
49+ $91.85
74+ $90.72
99+ $85.05
199+ $83.92
249+ $82.78
499+ $81.65
999+ $79.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YO6RLGFF6Y
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical
--- Dimensions
Ball Diameter 25.4mm
D 50.8mm
R 38.1mm
X 80.5mm
Y 98.4mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 119kg
Load to Max Deflection 272kg
Weight 0.79 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
