• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 136kg - Allow 2-3 Days
1 1

SKU: 570-509

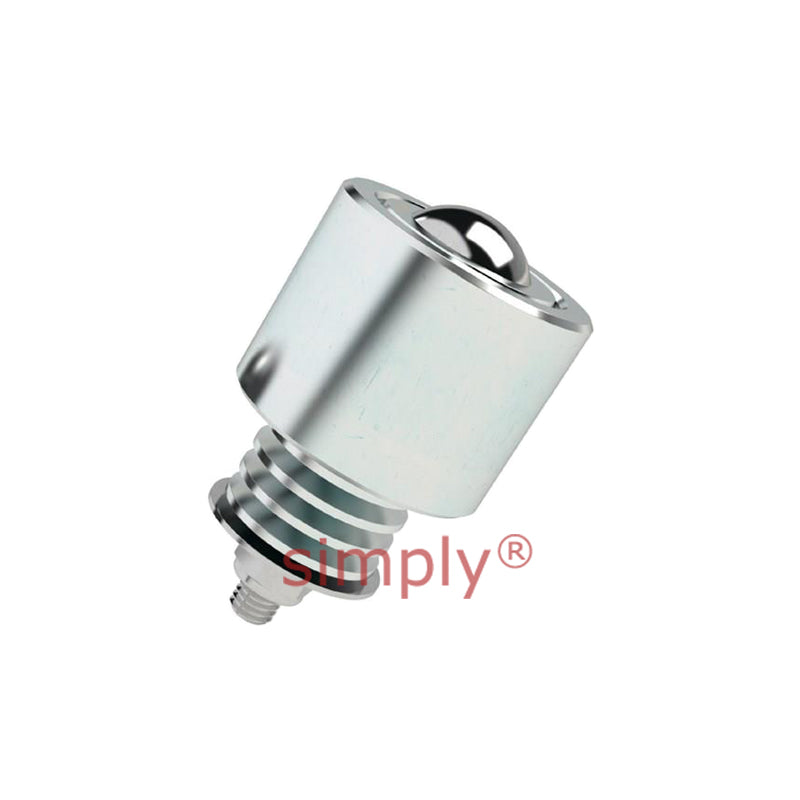

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 136kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 136kg - Allow 2-3 Days
$202.02 ex VAT
$202.02 ex VAT
Sale Sold out

In stock

Price Break
4+ $93.92
9+ $88.64
14+ $87.59
19+ $86.53
49+ $85.48
74+ $84.42
99+ $79.14
199+ $78.09
249+ $77.03
499+ $75.98
999+ $73.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MVV64HPJSS
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical
--- Dimensions
Ball Diameter 25.4mm
D 50.8mm
R 38.1mm
X 79.6mm
Y 98.4mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 136kg
Load to Max Deflection 245kg
Weight 0.79 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
