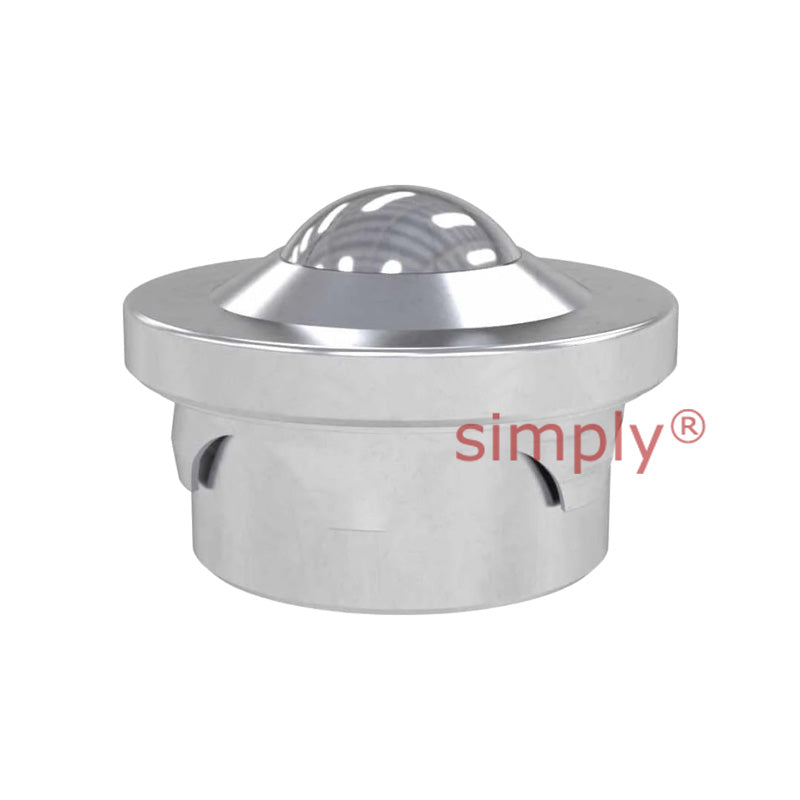

• High-Performance Medium Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 40kg - Allow 2-3 Days
1 1

SKU: 569-6215

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 40kg - Allow 2-3 Days

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 40kg - Allow 2-3 Days
$44.22 ex VAT
$44.22 ex VAT
Sale Sold out

In stock

Price Break
4+ $20.97
9+ $19.79
14+ $19.56
19+ $19.32
49+ $19.09
74+ $18.85
99+ $17.67
199+ $17.44
249+ $17.20
499+ $16.96
999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GESTV0CWNP

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
15.88mm
Technical
--- Dimensions
D 15.88mm
D1 31mm
D2 24mm
D3 (With Clip) 25mm
H 21mm
H1 10mm
H2 4mm
--- Loads and Speeds
Max Load 40 kg
Weight 0.07 kg
--- Materials
Material Body: 304 Stainless Steel<br>Ball: 402 Stainless Steel
