• High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days
1 1

SKU: 569-2215

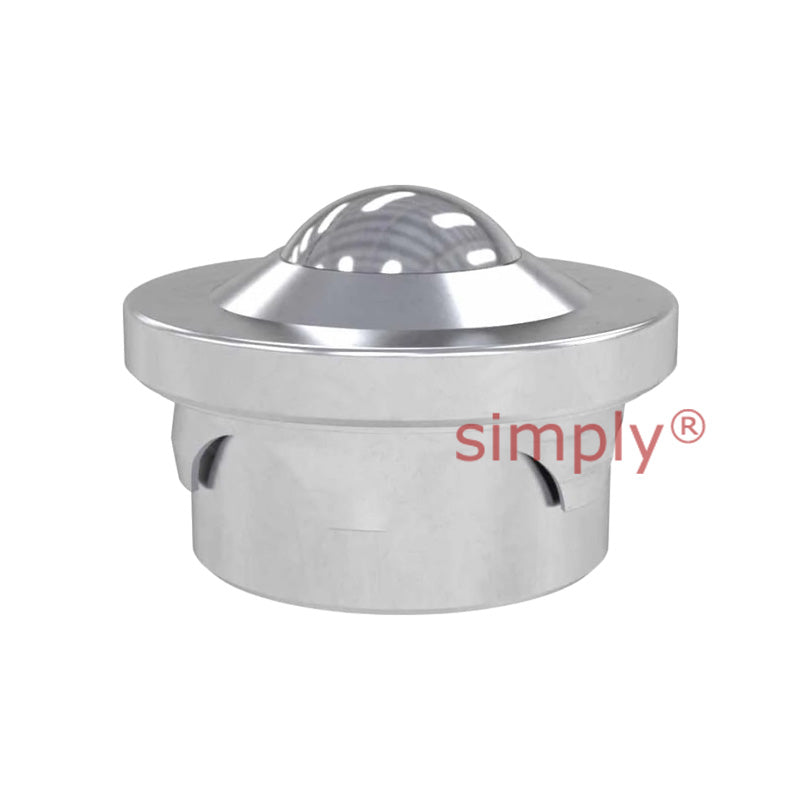

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days
$23.12 ex VAT
$23.12 ex VAT
Sale Sold out

In stock

Price Break
4+ $10.96
9+ $10.35
14+ $10.22
19+ $10.10
49+ $9.98
74+ $9.85
99+ $9.24
199+ $9.11
249+ $8.99
499+ $8.87
999+ $8.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CHN43UW9EB

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
15.88mm
Technical

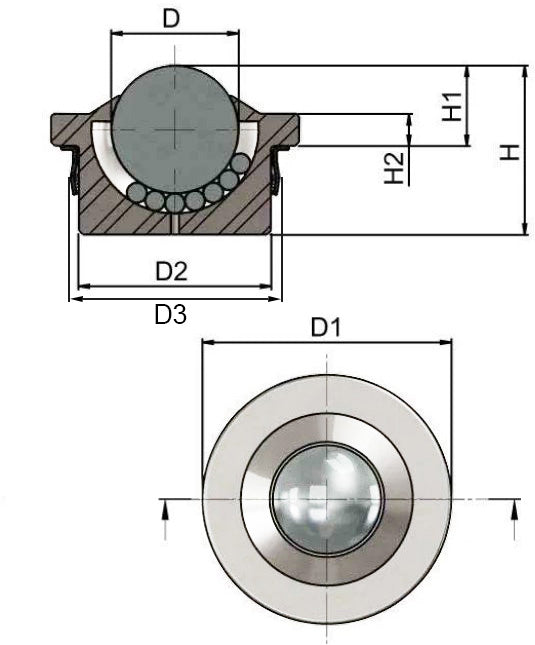

--- Dimensions
D 15.88mm
D1 31mm
D2 24mm
D3 (With Clip) 25/25.5mm
H 21mm
H1 10mm
H2 4mm
--- Loads and Speeds
Max Load 70 kg
Weight 0.07 kg
--- Materials
Material Body: Zinc Plated Carbon Steel<br>Ball: Steel 9Cr18Mo
