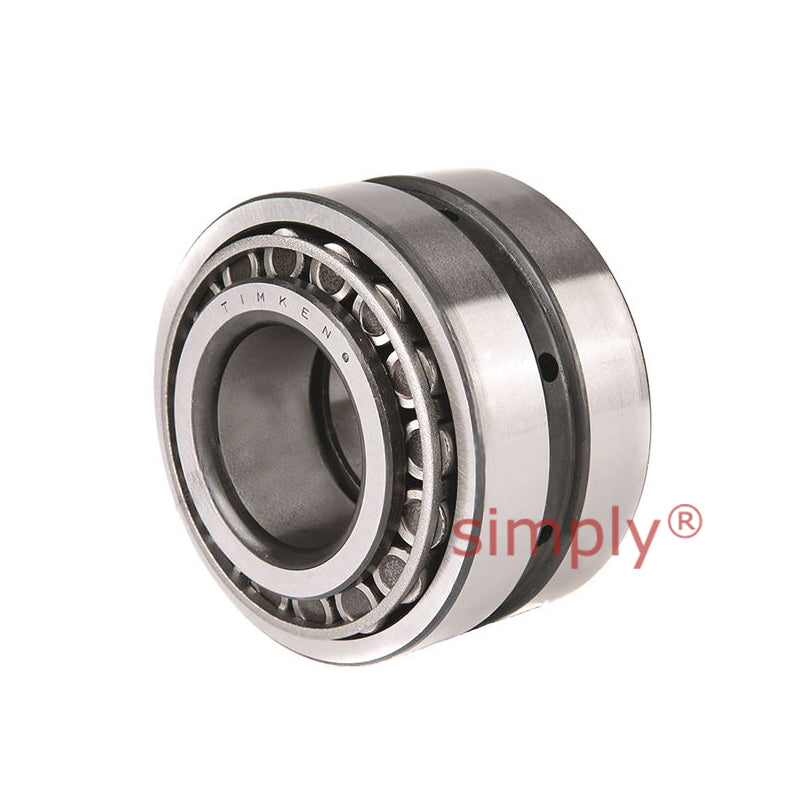

Timken 545/533D TDO Double Outer Race Taper Roller Bearing 1.9375x4.375x3.125x2.5 inch
Timken 545/533D TDO Double Outer Race Taper Roller Bearing 1.9375x4.375x3.125x2.5 inch
Out of stock
Description
Description

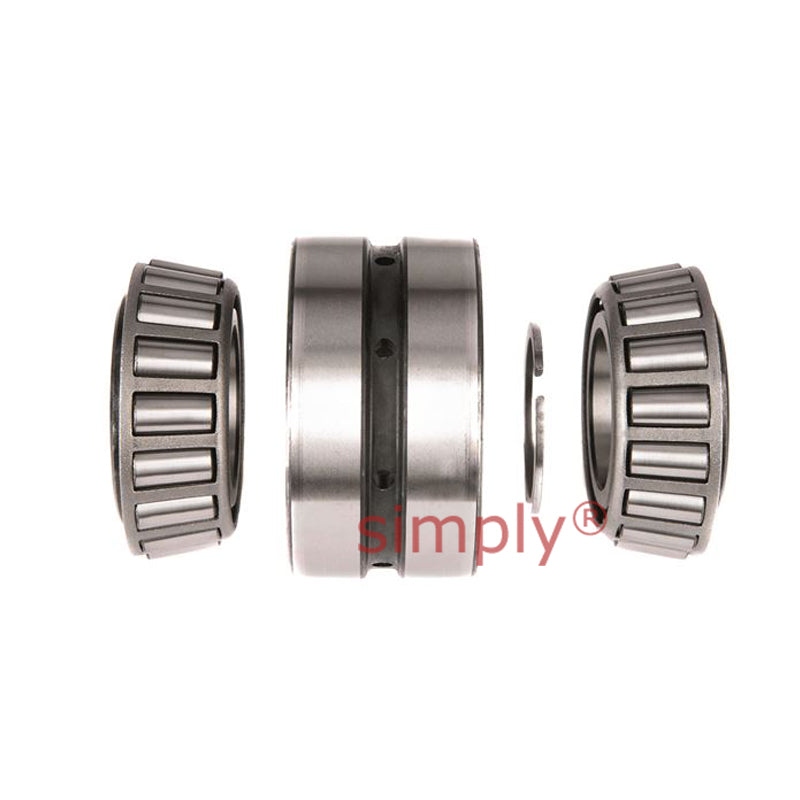

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 49.21mm = 1.9375 inch
- Outside Diameter:
- 111.13mm = 4.375 inch
- Width:
- 79.38mm = 3.125 inch
Technical
Technical

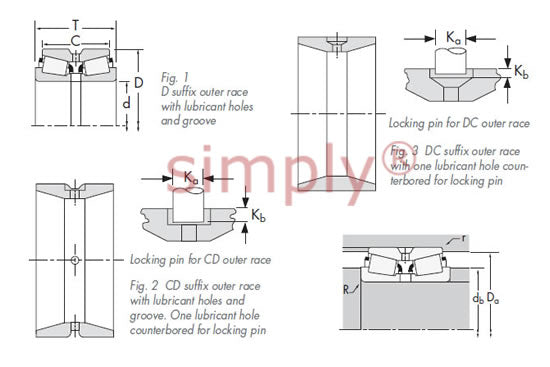

| d | 49.212mm = 1.9375 inch |
|---|---|
| D | 111.125mm = 4.375 inch |
| T | 79.375mm = 3.125 inch |
| C | 63.5mm = 2.5 inch |
| Dynamic (1) C1 | 277000N |
| Factors (5) e | 0.3 |
| Factors (5) Y1 | 2.28 |
| Factors (5) Y2 | 3.39 |
| Dynamic (2) C90 | 41300N |
| Dynamic (2) Ca90 | 21000N |
| Dynamic (2) C90(2) | 71900N |
| Factors (5) K | 1.97 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 64mm = 2.52 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 100mm = 3.94 inch |
| G1 | 64.3 |
| G2 | 16.1 |
| Cg | 0.0938 |
