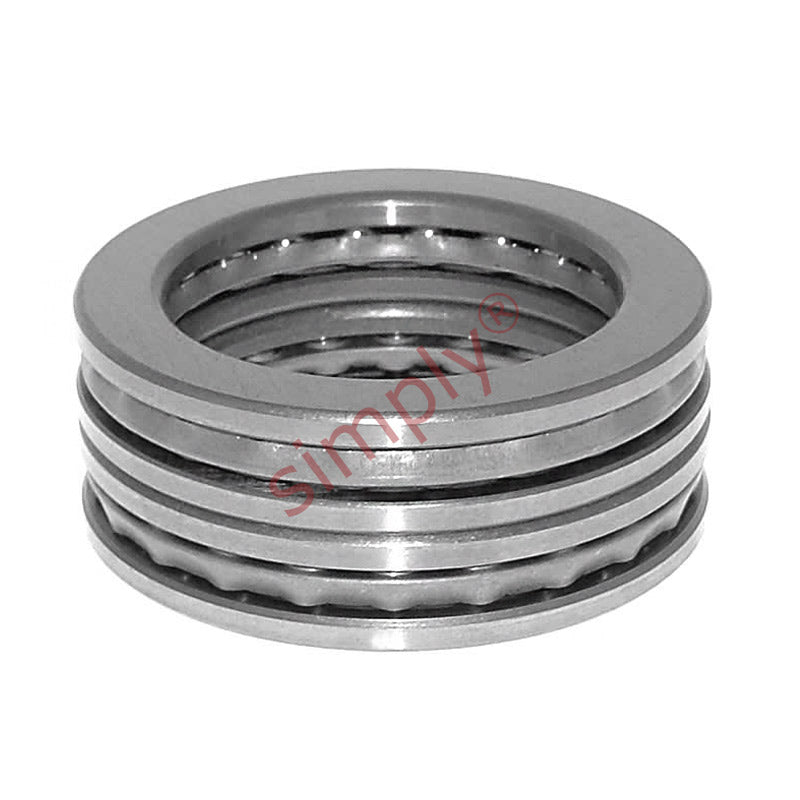

SKF 54420M Double Thrust Ball Bearing with Spherical Housing Washers 80x210x176mm

Name: SKF 54420M Double Thrust Ball Bearing with Spherical Housing Washers 80x210x176mm
Brand: SKF
SKU: 54420M-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 210mm
Width:: 176mm

Technical

d	80mm
D	210mm
H1	176mm
Dynamic load C	371 kN
Static load Co	1060 kN
Fatigue load limit Pu	31.5 kN
Minimum load factor A	5.8
Reference speed	950 rpm
Limiting speed	1400 rpm
Weight	29 kg
Seating washer	U420
D1	103mm
D2	155mm
D3	220mm
H	159.9mm
B	33mm
C	27mm
R	160mm
s	43.5mm
r1r2	3mm
r3r4	1.1mm
da	100mm
Da max	155mm
ra max	2.5mm
rb max	1mm
