SKU: 53178/53377/Q-SKF

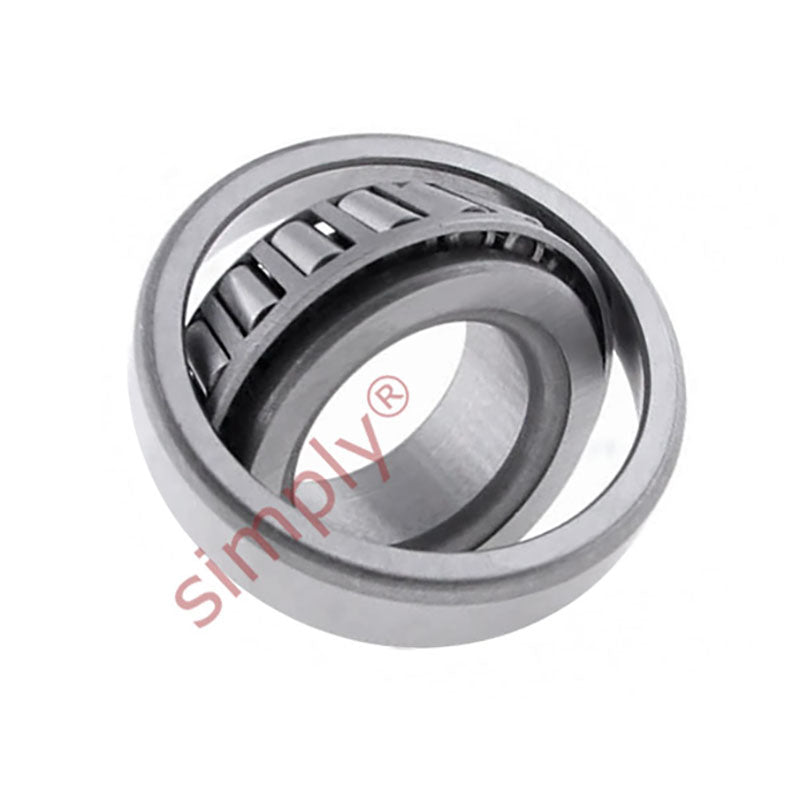

SKF 53178/53377/Q Imperial Taper Roller Bearing 1.75x3.75x1.2188 inches

Name: SKF 53178/53377/Q Imperial Taper Roller Bearing 1.75x3.75x1.2188 inches
Brand: SKF
SKU: 53178/53377/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Outside Diameter:: 95.25mm = 3.75 (3-3/4) inch
Width:: 30.96mm = 1.219 (1-7/32) inch
Seals / Shields:: None

Technical

d	44.45mm
D	95.25mm
T	30.958mm
Dynamic load	88 kN
Static load	96.5 kN
Fatigue load limit Pu	11.4 kN
Reference speed	5000 rpm
Limiting speed	7000 rpm
Weight	0.93 kg
d1	69.4mm
B	28.3mm
C	20.638mm
r1r2 min	2mm
r3r4 min	2.3mm
a	30mm
da max	53mm
db min	52.5mm
Da min	72mm
Da max	86mm
Db min	89mm
Ca min	4mm
Cb min	10mm
ra max	2mm
rb max	2mm
Calculation factor e	0.75
Calculation factor Y	0.8
Calculation factor Y0	0.45
