• KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
1 1

SKU: 5304-ZZ-KSM

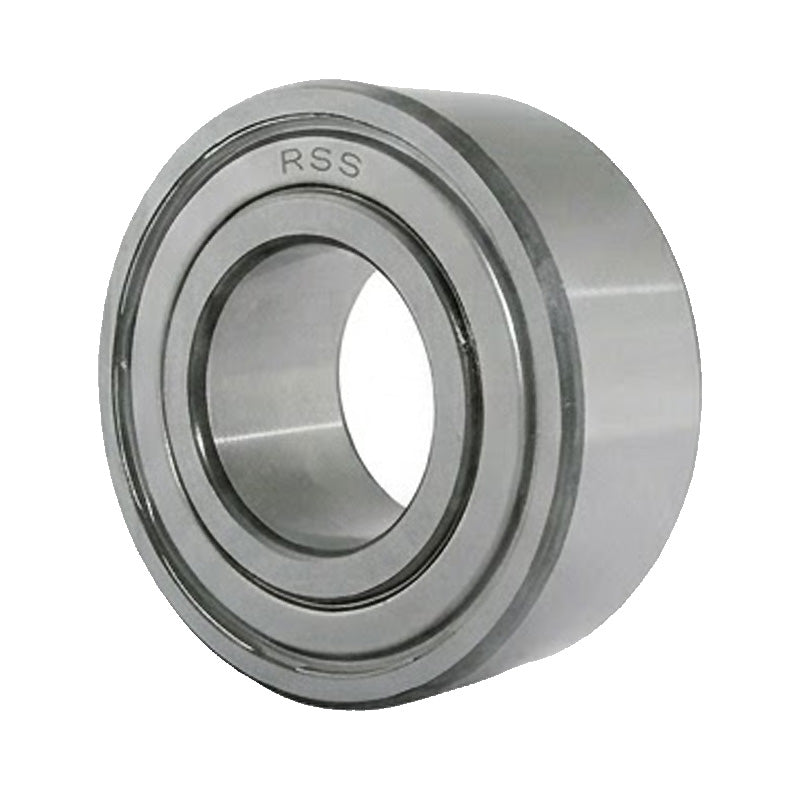

KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm

KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
$52.27 ex VAT
$52.27 ex VAT
Sale Sold out

Equivalent to: 3304ZZ

In stock

Price Break
4+ $24.78
9+ $23.39
19+ $23.11
29+ $22.83
49+ $22.56
99+ $22.28
179+ $20.88
249+ $20.61
499+ $20.33
699+ $20.05
999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Brand / Quality:
KSM - Good Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
22.2mm
Seals / Shields:
Metal Shielded
Technical
--- Bearing Dimensions
d 20mm
D 52mm
B 22.2mm
--- Abutment Dimensions
a 30.5mm
r1r2 min 1.1mm
r1r2 max 1mm
Da min 27mm
da max 45mm
--- Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr 20600 N
Basic Static Load Raiting Cor 12700 N
Limiting Speed in Grease 8000 rpm
Limiting Speed in Oil 11000 rpm
Weight 0.217 kg
