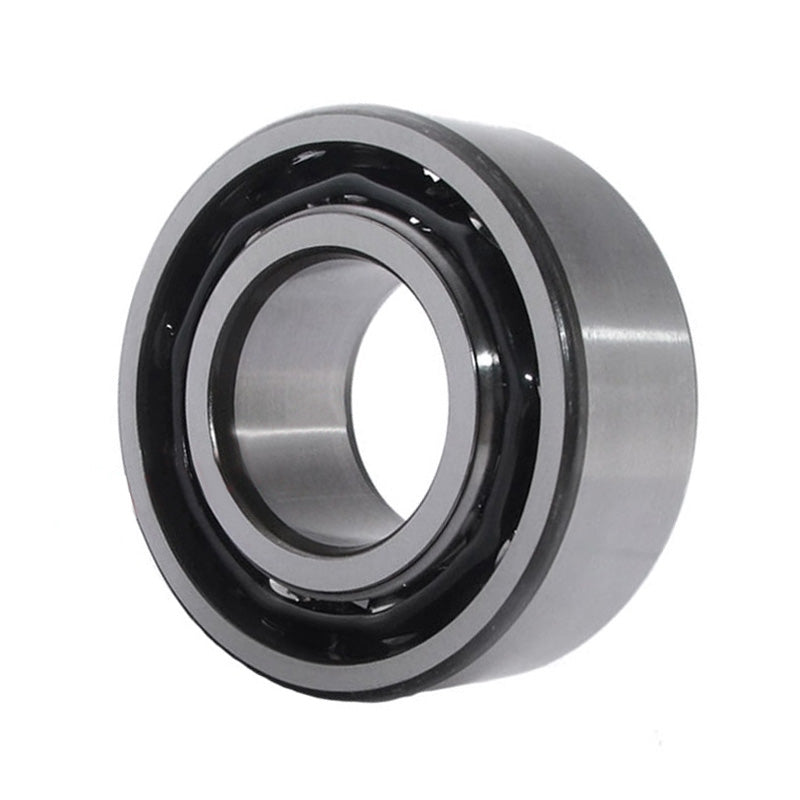

• KSM 5303 Open Double Row Angular Contact Ball Bearing 17x47x22.2mm
1 1

SKU: 5303-KSM

KSM 5303 Open Double Row Angular Contact Ball Bearing 17x47x22.2mm

KSM 5303 Open Double Row Angular Contact Ball Bearing 17x47x22.2mm
$41.61 ex VAT
$41.61 ex VAT
Sale Sold out

Equivalent to: 3303

In stock

Price Break
4+ $19.73
9+ $18.62
19+ $18.40
29+ $18.18
49+ $17.96
99+ $17.74
179+ $16.63
249+ $16.41
499+ $16.18
699+ $15.96
999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DRAC1_DESC
Brand / Quality:
KSM - Good Quality
Inside Diameter:
17mm
Outside Diameter:
47mm
Width:
22.2mm
Seals / Shields:
None
Technical
--- Bearing Dimensions
d 17mm
D 47mm
B 22.2mm
--- Abutment Dimensions
a 28.5mm
r1r2 min 1mm
r1r2 max 1mm
Da min 23mm
da max 41mm
--- Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr 20100 N
Basic Static Load Raiting Cor 12100 N
Limiting Speed in Grease 9000 rpm
Limiting Speed in Oil 12000 rpm
Weight 0.181 kg
