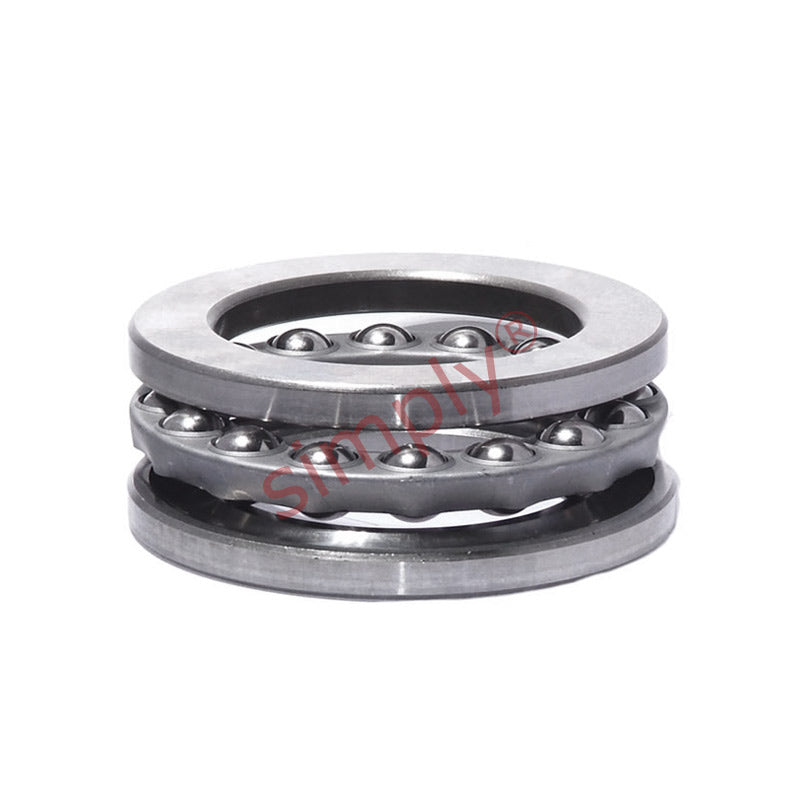

• 51310 Thrust Ball Bearing 50x95x31mm
1 1

SKU: 51310.MB

51310 Thrust Ball Bearing 50x95x31mm

51310 Thrust Ball Bearing 50x95x31mm
$97.80 ex VAT
$97.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $46.38
19+ $43.77
29+ $43.25
39+ $42.73
49+ $42.21
74+ $41.69
99+ $39.08
199+ $38.56
249+ $38.04
499+ $37.52
999+ $36.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
50mm
Outside Diameter:
95mm
Width:
31mm
Technical
d 50mm
D 95mm
H 31mm
Dynamic load C 88.4 kN
Static load Co 190 kN
Fatigue load limit Pu 6.95 kN
Minimum load factor A 0.19
Reference speed 2600 rpm
Limiting speed 3600 rpm
Weight 0.94 kg
d1 95mm
D1 52mm
r1r2 min 1.1mm
da min 77mm
Da max 68mm
ra max 1mm
