SKU: 50-1-SD-NO12-RENOLD
Renold SD 50-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $12.72 ex VAT
- Sale price
- $12.72
- Regular price
-
In stock
Quantity Price Breaks
2
$11.32
5
$10.68
10
$10.56
29
$10.43
49
$10.30
75
$10.18
100
$9.54
200
$9.41
250
$9.29
500
$9.16
1000
$8.90
SKU:
50-1-SD-NO12-RENOLD
Renold SD 50-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $12.72 ex VAT
- Sale price
- $12.72
- Regular price
-
Description

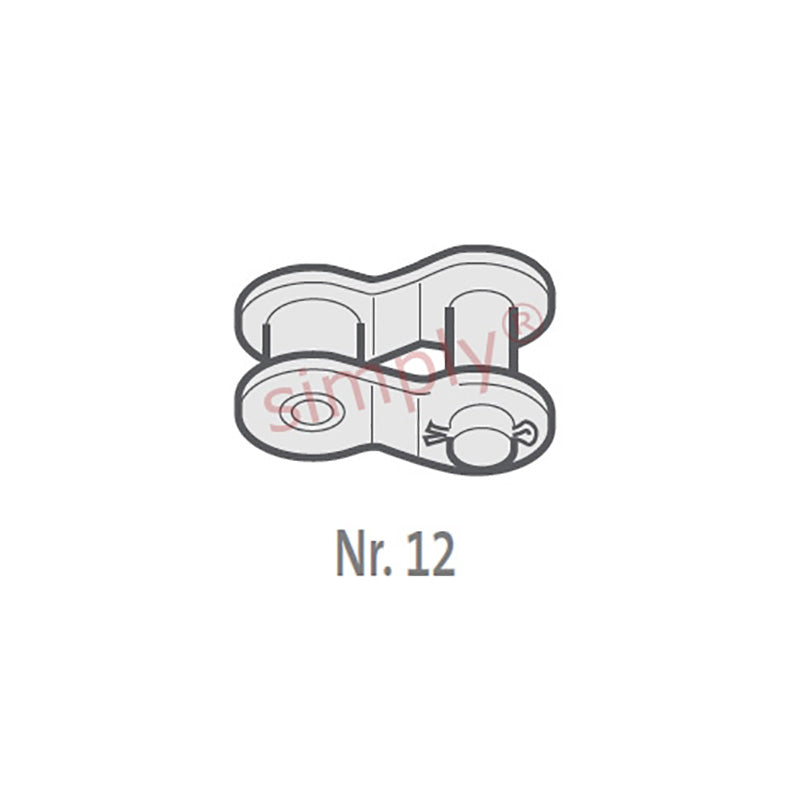

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 15.09mm |
| Plate Width Inner max (E) | = | 2mm |
| Plate Width Outer max (F) | = | 2mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 20.9mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 21800 N |
| Weight | = | 0.015kg/m |
