• NTN 4T-LM29749/LM29711 Tapered Roller Bearing Cup and Cone Set 1.5x2.563x0.78 inch
1 1

SKU: 4T-LM29749/LM29711-NTN

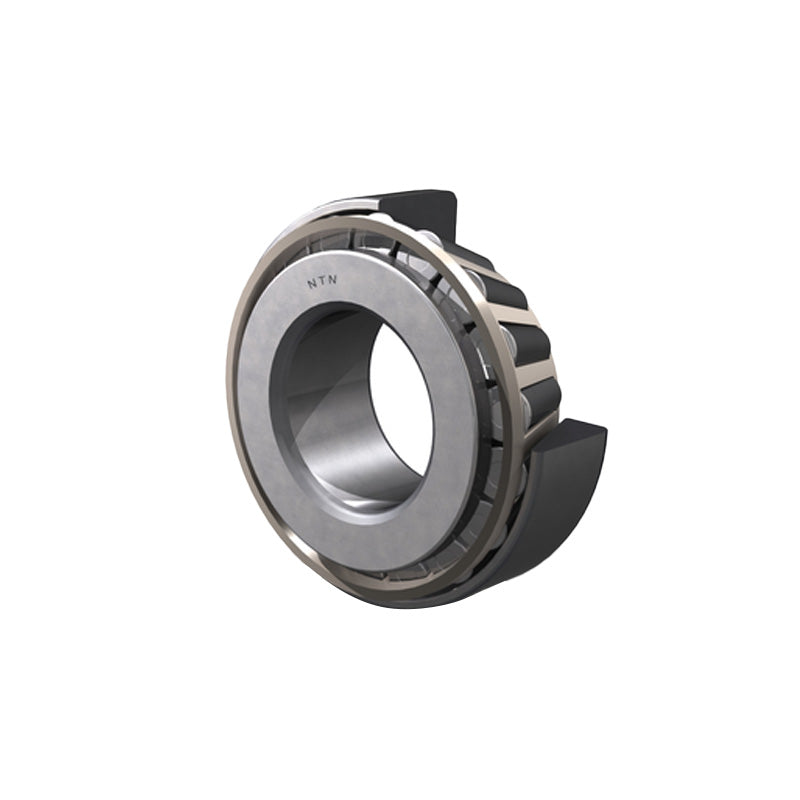

NTN 4T-LM29749/LM29711 Tapered Roller Bearing Cup and Cone Set 1.5x2.563x0.78 inch

NTN 4T-LM29749/LM29711 Tapered Roller Bearing Cup and Cone Set 1.5x2.563x0.78 inch
$58.46 ex VAT
$58.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.72
5+ $26.17
10+ $25.85
25+ $25.54
49+ $25.23
74+ $24.92
99+ $23.36
199+ $23.05
249+ $22.74
499+ $22.43
999+ $21.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
65.09mm = 2.563 (2-9/16) inch
Width:
19.81mm = 0.78 inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 1.5 inch (38.1mm)
D (inch) 2.563 inch (65.09mm)
T 0.78 inch (19.812mm)
B 0.72 inch (18.228mm)
C 0.62 inch (15.748mm)
--- Speeds and loads
C<sub>r</sub> 43.5kN
C<sub>or</sub> 57kN
r<sub>as</sub> max 2.3mm
r<sub>1as</sub> max 1.3mm
Weight 0.25kg
