• NTN 4T-45284/45220 Tapered Roller Bearing Cup and Cone Set 2x4.125x1.187 inch
1 1

SKU: 4T-45284/45220-NTN

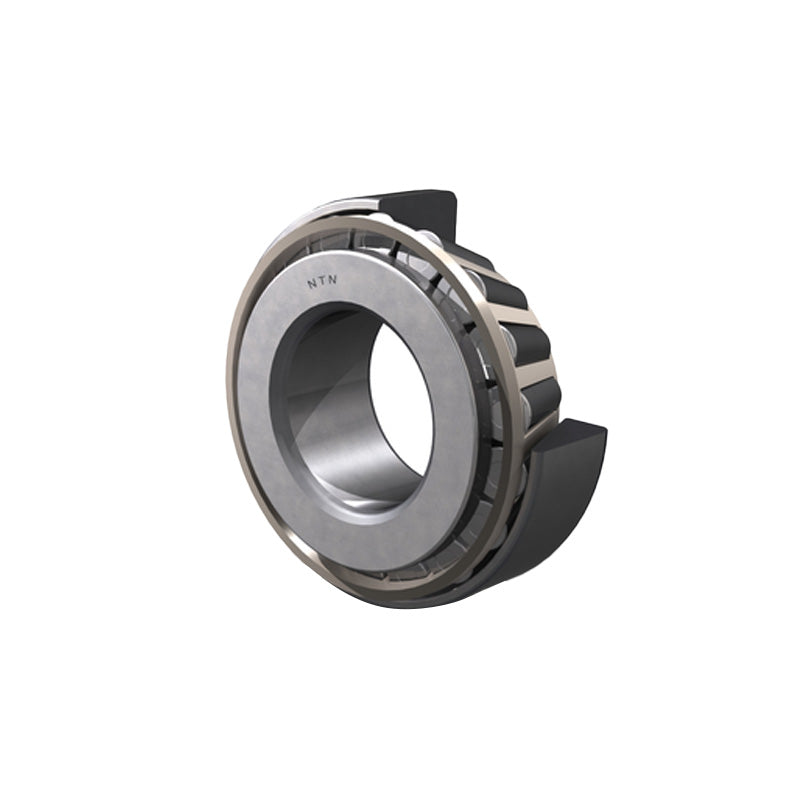

NTN 4T-45284/45220 Tapered Roller Bearing Cup and Cone Set 2x4.125x1.187 inch

NTN 4T-45284/45220 Tapered Roller Bearing Cup and Cone Set 2x4.125x1.187 inch
$98.22 ex VAT
$98.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.57
5+ $43.96
10+ $43.43
25+ $42.91
49+ $42.39
74+ $41.86
99+ $39.25
199+ $38.72
249+ $38.20
499+ $37.68
999+ $36.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
104.78mm = 4.125 (4-1/8) inch
Width:
30.16mm = 1.187 (1-3/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 2 inch (50.8mm)
D (inch) 4.125 inch (104.775mm)
T 1.187 inch (30.162mm)
B 1.219 inch (30.958mm)
C 0.94 inch (23.812mm)
--- Speeds and loads
C<sub>r</sub> 144kN
C<sub>or</sub> 169kN
Speed in grease 3500rpm
Speed in oil 4700rpm
--- Abutment dimensions
d<sub>a</sub> 71mm
d<sub>b</sub> 59mm
D<sub>a</sub> 93mm
D<sub>b</sub> 99mm
r<sub>as</sub> max 6.4mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> 7.9mm
Constant e 0.33
Axial load factor Y<sub>2</sub> 1.8
Axial load factor Y<sub>0</sub> 0.99
Weight 1.24kg
