SKU: 4T-30210-NTN

NTN 4T-30210 Tapered Roller Bearing Cup and Cone Set 50x90x21.75mm

NTN 4T-30210 Tapered Roller Bearing Cup and Cone Set 50x90x21.75mm
Regular price $67.94 ex VAT
Regular price Sale price $67.94 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.22
5+ $30.41
10+ $30.05
25+ $29.68
49+ $29.32
74+ $28.96
99+ $27.15
199+ $26.79
249+ $26.43
499+ $26.06
999+ $25.34
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

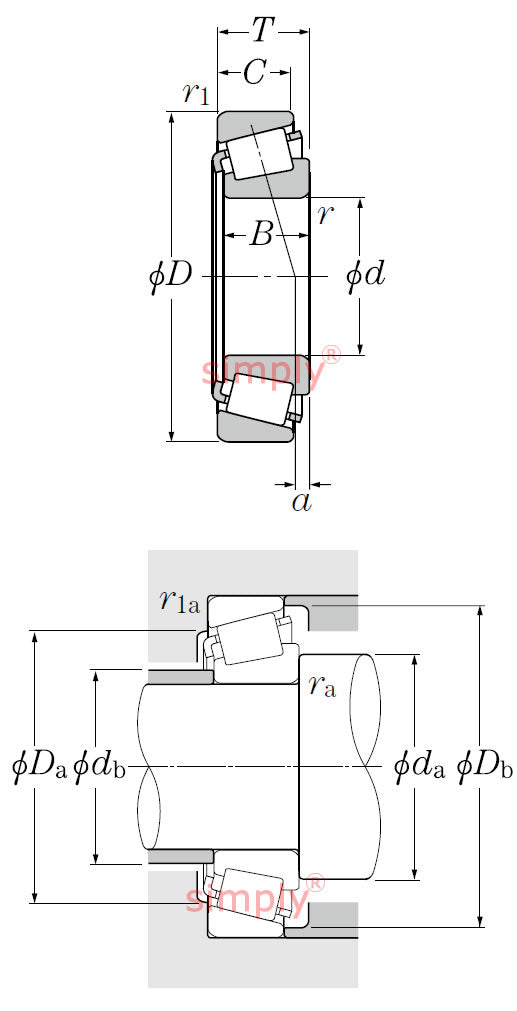

--- Bearing dimensions
d 50mm
D 90mm
T 21.75mm
B 20mm
C 17mm
r<sub>s</sub> min 1.5mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 85.5kN
Static load C<sub>or</sub> 93kN
Allowable Speed in grease 4000rpm
Allowable Speed in oil 5300rpm
--- Abutment dimensions
ISO Dimension series 3DB
d<sub>a</sub> min 58.5mm
d<sub>b</sub> max 58mm
D<sub>a</sub> max 81.5mm
D<sub>a</sub> min 76.5mm
D<sub>b</sub> min 85.5mm
S<sub>a</sub> min 3mm
S<sub>b</sub> min 4.5mm
r<sub>as</sub> max 1.5mm
r<sub>1as</sub> max 1.5mm
Load center a 19.5mm
Constant e 0.42mm
Y<sub>2</sub> 1.43mm
Y<sub>0</sub> 0.79mm
Weight 0.56kg
