SKU: 48B-3-2.5MTR-MB

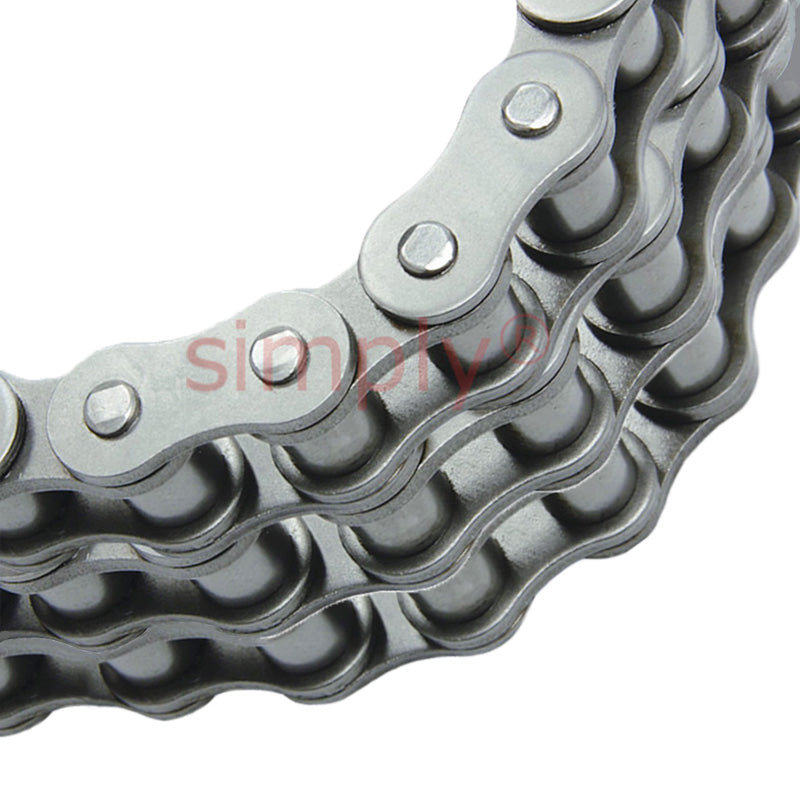

Branded 48B-3 BS Triplex Roller Chain 3 inch Pitch 2.5 Metres

Branded 48B-3 BS Triplex Roller Chain 3 inch Pitch 2.5 Metres

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Pitch (P) 76.2mm = 3 inch
Roller Diameter (D1 max) 48.26mm
Width between inner plates (B1 min) 45.72mm
Pin dia meter (D2 max) 29.24mm
Pin length (L max) 281.6mm
Pin length (Lc max) 289.4mm
Inner plate depth (H2 max) 63.8mm
Plate thickness (T max) 12/10mm
Ultimate tensile strength (Q min) kN/LB 1500.0/337213
Average tensile strength (Q0) kN 1710
Transverse pitch (Pt) mm 91.21
Weight per meter (q) kg/m 75
