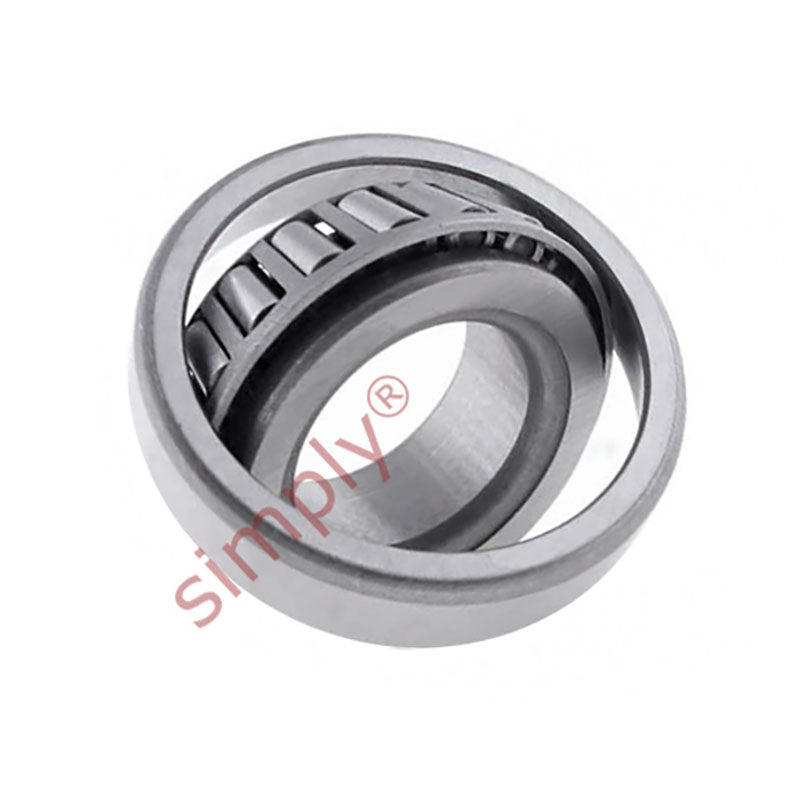

SKF 47678/47620 Imperial Taper Roller Bearing 3x5.25x1.3125 inches

Name: SKF 47678/47620 Imperial Taper Roller Bearing 3x5.25x1.3125 inches
Brand: SKF
SKU: 47678/47620-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 76.2mm = 3 inch
Outside Diameter:: 133.35mm = 5.25 (5-1/4) inch
Width:: 33.33mm = 1.312 (1-5/16) inch
Seals / Shields:: None

Technical

d	76.2mm
D	133.35mm
T	33.338mm
Dynamic load	165 kN
Static load	260 kN
Fatigue load limit Pu	30 kN
Reference speed	3400 rpm
Limiting speed	5000 rpm
Weight	1.9 kg
d1	108mm
B	33.338mm
C	26.195mm
r1r2 min	6.4mm
r3r4 min	3.3mm
a	29mm
da max	93mm
db min	96mm
Da min	117mm
Da max	120.5mm
Db min	126mm
Ca min	5mm
Cb min	7mm
ra max	6mm
rb max	3mm
Calculation factor e	0.4
Calculation factor Y	1.5
Calculation factor Y0	0.8
