SKU: 45x55x6_UIP_NAK

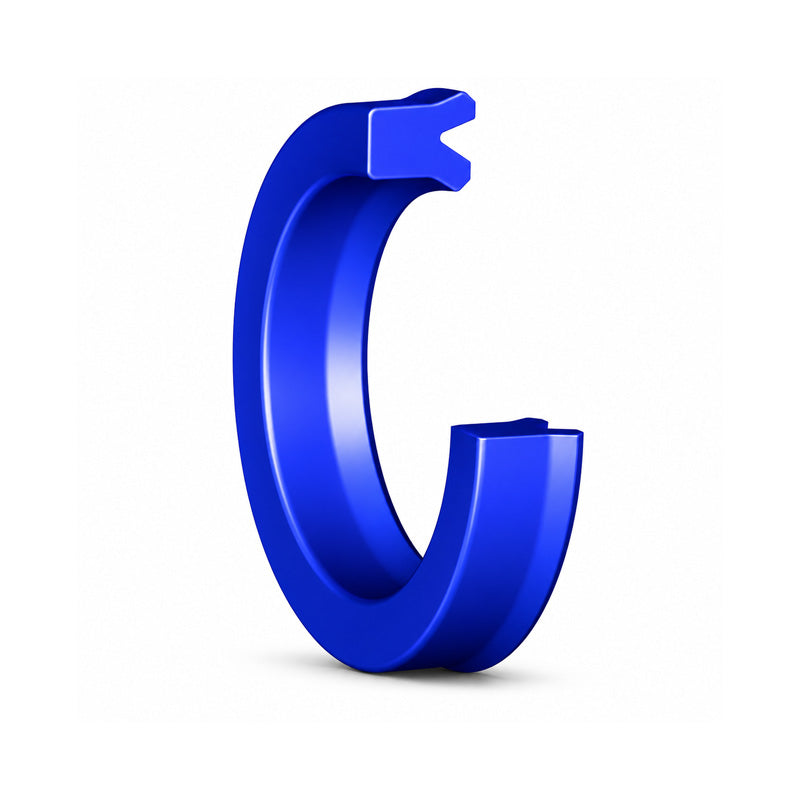

NAK 45x55x6mm UIP Polyurethane Rod Seal - Allow 7-10 Days
NAK 45x55x6mm UIP Polyurethane Rod Seal - Allow 7-10 Days
Regular price
$6.93
ex VAT
Regular price
Sale price
$6.93
ex VAT
In stock
Price Break
10+
$3.28
19+
$3.10
29+
$3.06
39+
$3.02
49+
$2.99
74+
$2.95
99+
$2.77
199+
$2.73
249+
$2.69
499+
$2.66
999+
$2.58
Quantity
Couldn't load pickup availability
Description
Description
NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Length:
- 6mm
- Material:
- Polyurethane
- Style:
- UIP
- Colour:
- Blue

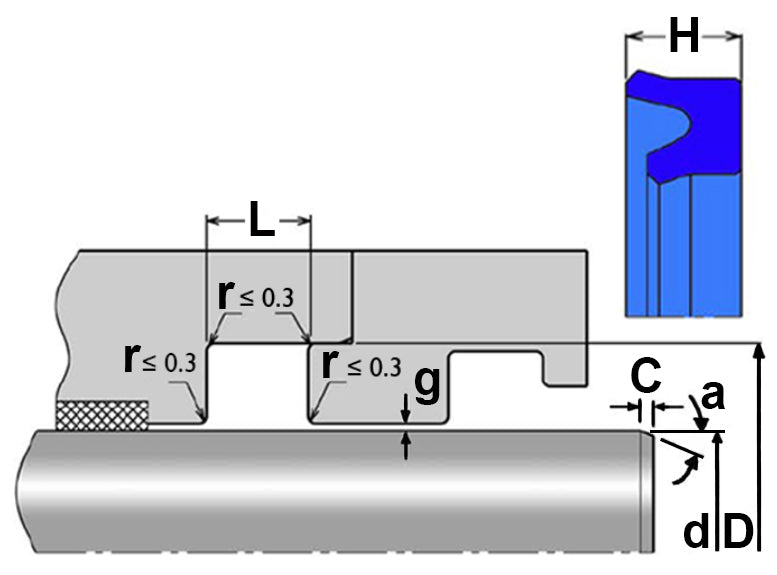

Technical
Technical
| d | 45mm |
|---|---|
| D | 55mm |
| L | 7mm |
| h | 6mm |
| C | 2.5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H10 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
