SKU: 41-1-SD-NO11-RENOLD
Renold SD 41-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1/2 inch Pitch
Renold SD 41-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1/2 inch Pitch
Out of stock
Description
Description

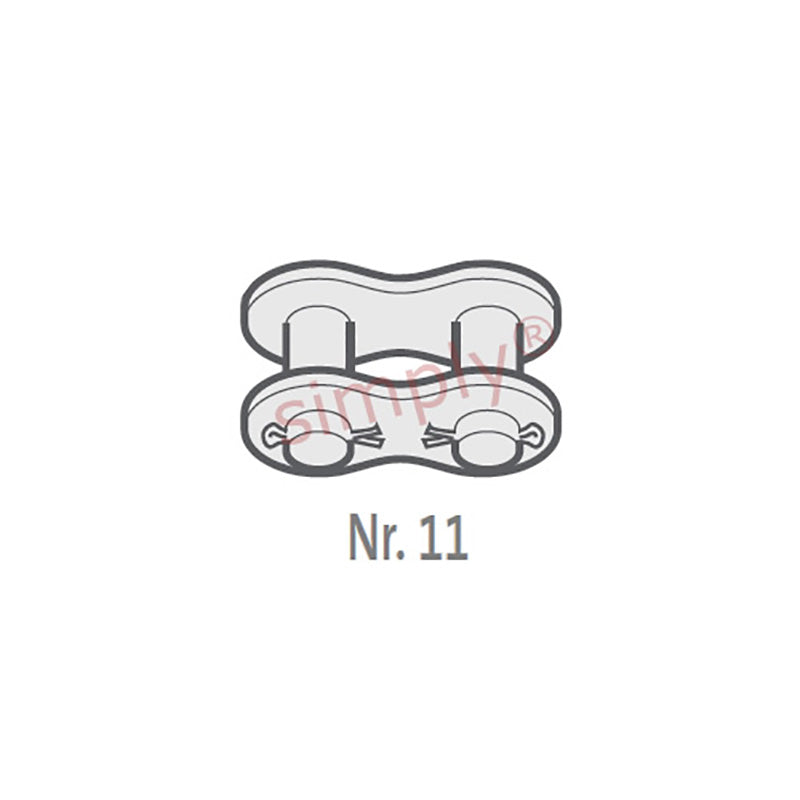

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 6.25mm |
| Roller Diameter max (C) | 7.77mm |
| Plate Height max (D) | 9.9mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 13.75mm |
| Connecting Link Extension max (J) | 1.65mm |
| ISO606 Tensile Strength min | 6700 N |
| Weight | 0.41kg/m |
