SKU: 41-1-NO26-MB
Branded 41-1-NO26 ANSI / AS Narrow Section Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Branded 41-1-NO26 ANSI / AS Narrow Section Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
$7.81
ex VAT
Regular price
Sale price
$7.81
ex VAT
Equivalent to: 41-1-CL
In stock
Price Break
2+
$3.70
5+
$3.50
10+
$3.46
29+
$3.41
49+
$3.37
75+
$3.33
100+
$3.12
200+
$3.08
250+
$3.04
500+
$3.00
1000+
$2.91
Quantity
Couldn't load pickup availability
Description
Description

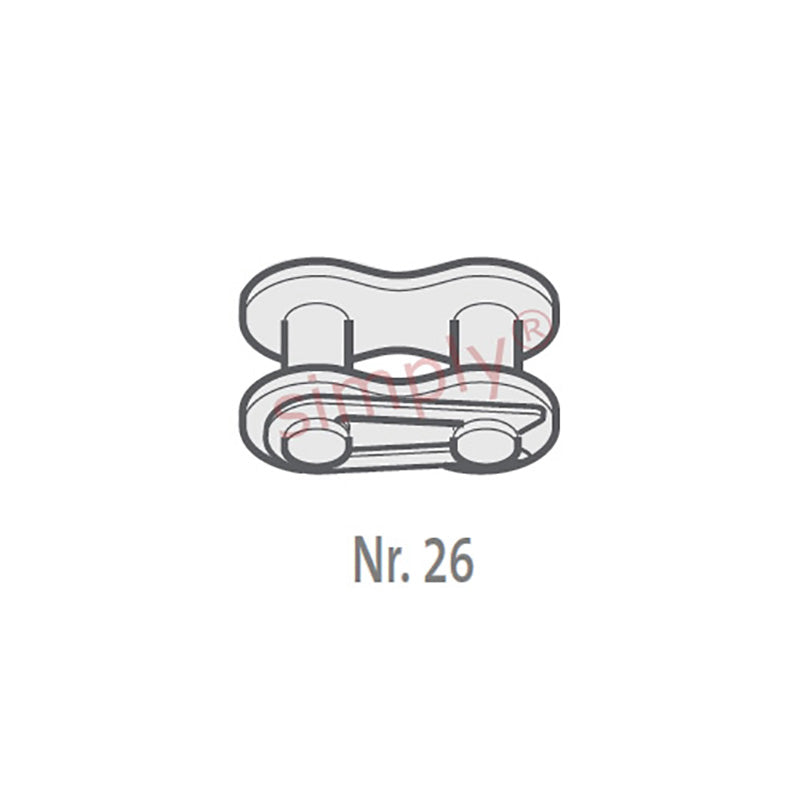

Branded CL / No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch (Narrow Section)
Technical
Technical

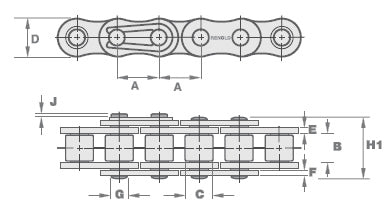

| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 6.35mm |
| Roller Diameter max (C) | 7.77mm |
| Plate Height max (D) | 9.91mm |
| Plate Width Inner max (E) | 1.3mm |
| Plate Width Outer max (F) | 1.3mm |
| Pin Diameter max (G) | 3.59mm |
| Pin Length max (H1) | 14.5mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 6700 N |
| Weight | 0.42kg/m |
