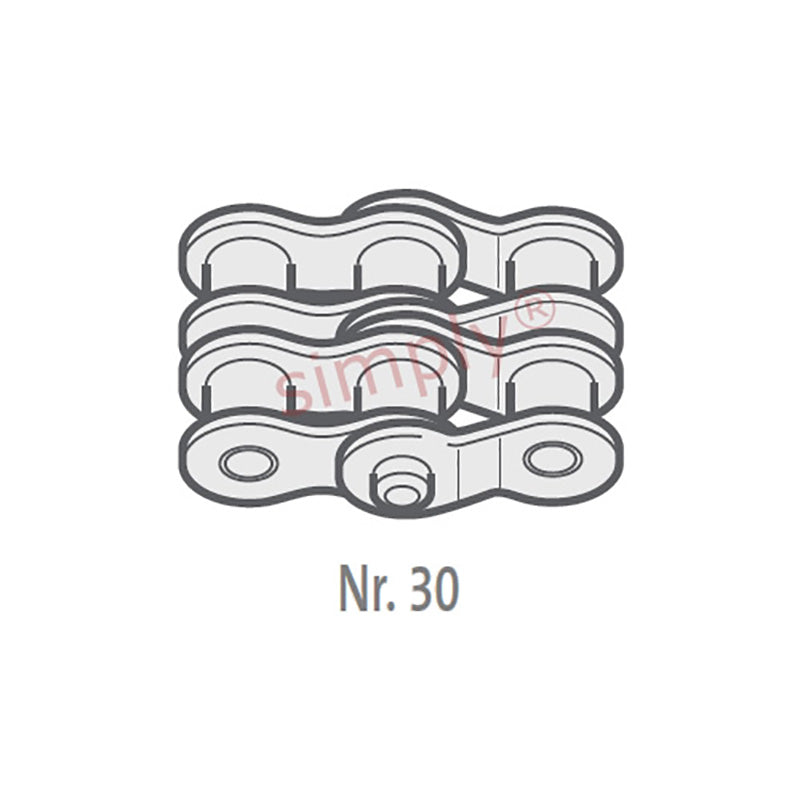

Renold SD 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
Renold SD 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
Out of stock
Description
Description
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 31.1mm |
| Connecting Link Extension max (J) | 1.15mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 27800 N |
| Weight | 0.02kg/m |
