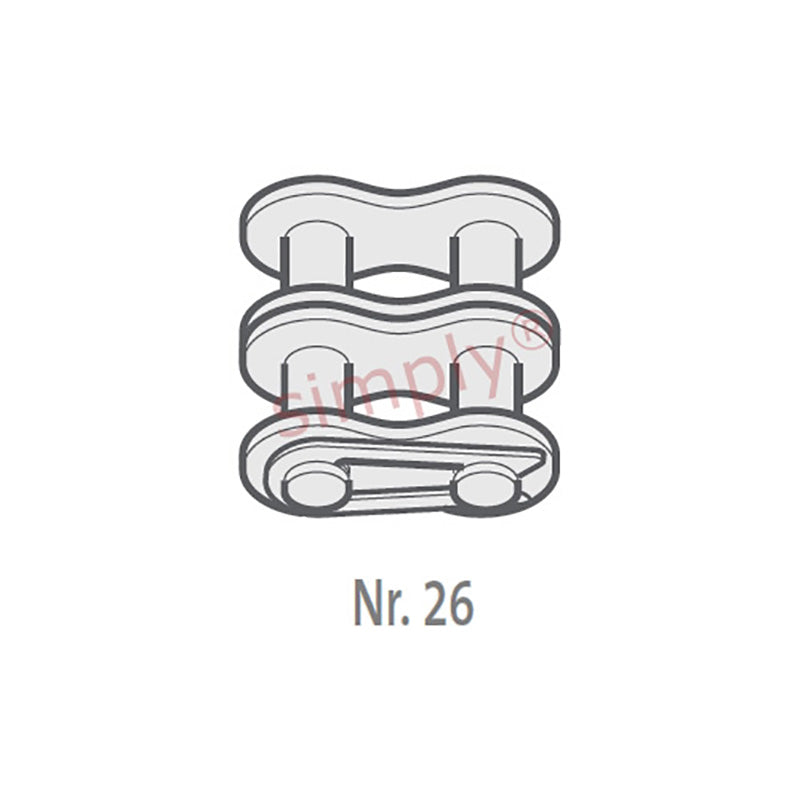

• Renold Blue Box 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
1 1

SKU: 40-2-BB-NO26-RENOLD

Renold Blue Box 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch

Renold Blue Box 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
$18.52 ex VAT
$18.52 ex VAT
Sale Sold out

In stock

Price Break
2+ $8.78
5+ $8.29
10+ $8.19
29+ $8.09
49+ $7.99
75+ $7.89
100+ $7.40
200+ $7.30
250+ $7.20
500+ $7.10
1000+ $6.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO26D_DESC
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.85mm
Roller Diameter max (C) 7.92mm
Plate Height max (D) 11.2mm
Plate Width Inner max (E) 1.55mm
Plate Width Outer max (F) 1.55mm
Pin Diameter max (G) 3.96mm
Pin Length max (H2) 30.8mm
Connecting Link Extension max (J) 2.1mm
Transverse Pitch nom (K) 14.38mm
ISO606 Tensile Strength min 27800 N
Weight 0.02kg/m
