SKU: 40-1-BB-NO11-RENOLD
Renold Blue Box 40-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $11.21 ex VAT
- Sale price
- $11.21
- Regular price
-
In stock
Quantity Price Breaks
2
$9.98
5
$9.42
10
$9.30
29
$9.19
49
$9.08
75
$8.97
100
$8.41
200
$8.30
250
$8.18
500
$8.07
1000
$7.85
SKU:
40-1-BB-NO11-RENOLD
Renold Blue Box 40-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $11.21 ex VAT
- Sale price
- $11.21
- Regular price
-
Description

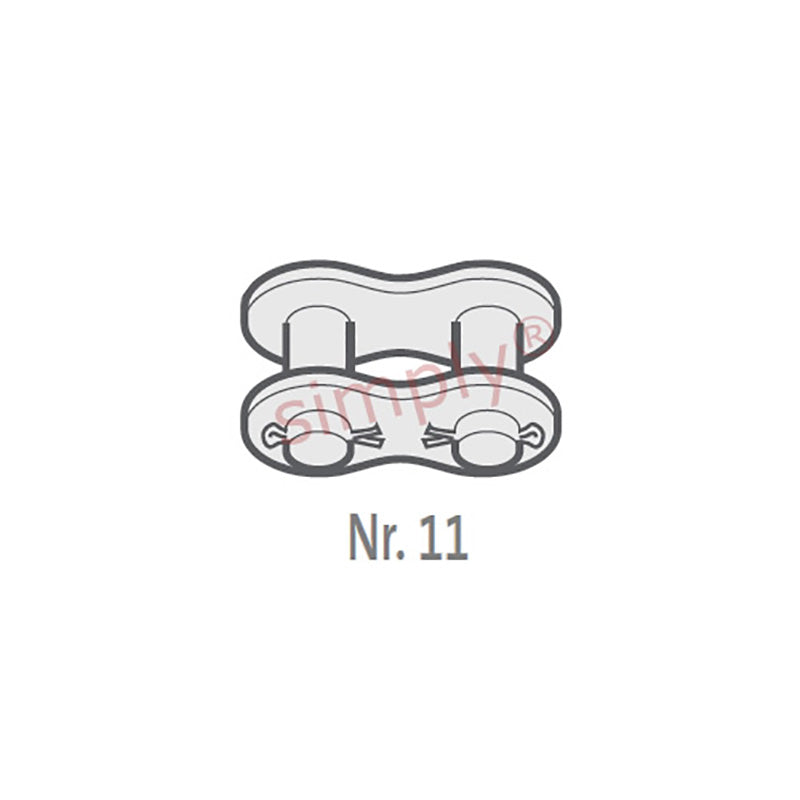

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 6.35mm |
| Roller Diameter max (C) | = | 7.77mm |
| Plate Height max (D) | = | 9.91mm |
| Plate Width Inner max (E) | = | 1.3mm |
| Plate Width Outer max (F) | = | 1.3mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 14.5mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 6700 N |
| Weight | = | 0.01kg/m |
