SKU: 390A/394D/X1S395-TIM

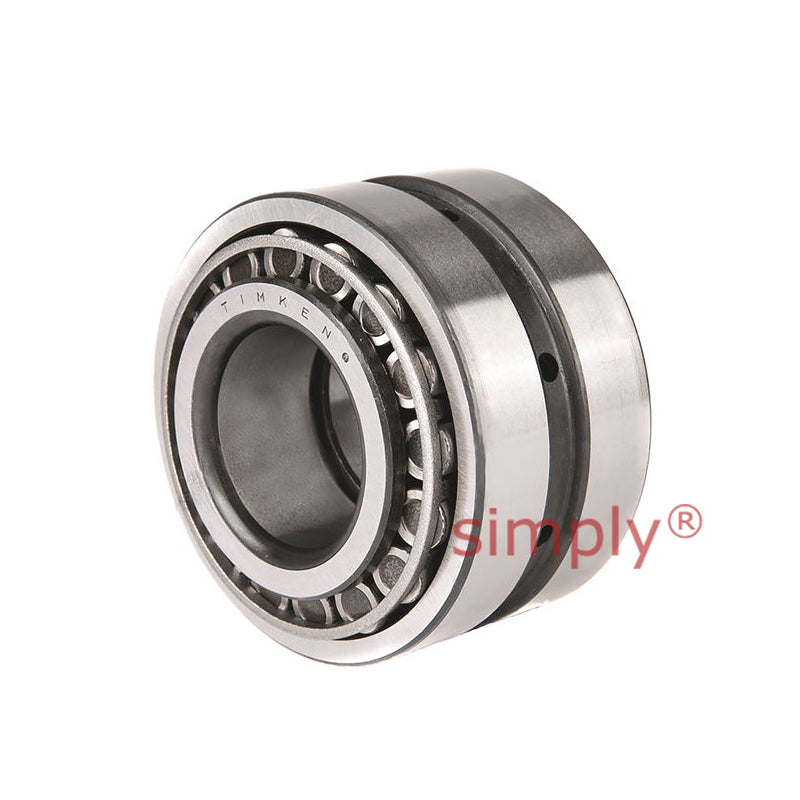

Timken 390A/394D/X1S395 TDO Double Outer Race Taper Roller Bearing 2.5x4.3307x2.0625x1.8125 inch
Timken 390A/394D/X1S395 TDO Double Outer Race Taper Roller Bearing 2.5x4.3307x2.0625x1.8125 inch
Out of stock
Description
Description

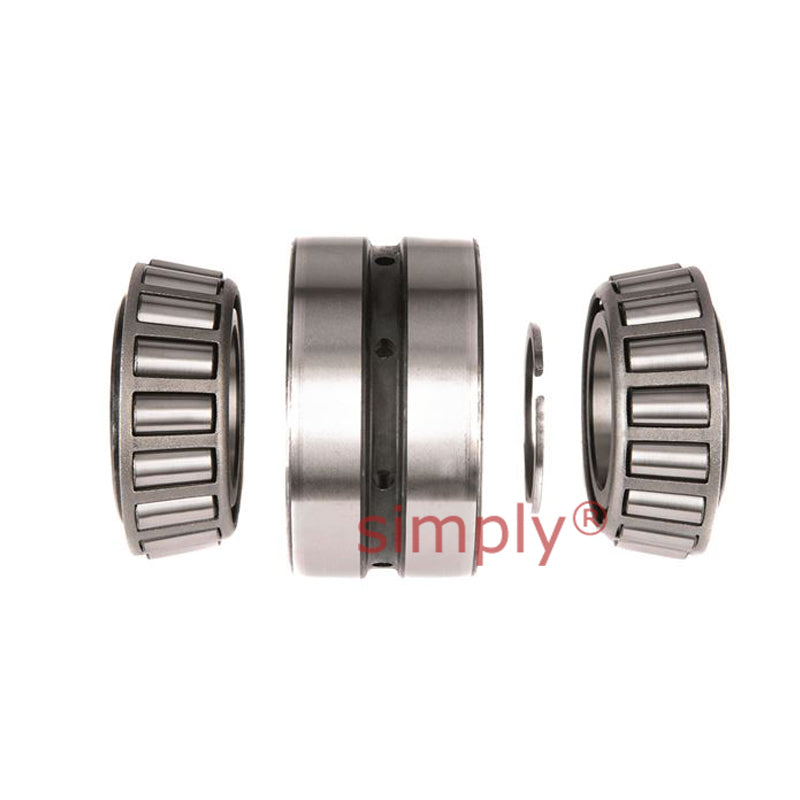

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 63.50mm = 2.5 inch
- Outside Diameter:
- 110.00mm = 4.3307 inch
- Width:
- 52.39mm = 2.0625 inch
Technical
Technical
| d | 63.5mm = 2.5 inch |
|---|---|
| D | 110mm = 4.3307 inch |
| T | 52.388mm = 2.0625 inch |
| C | 46.038mm = 1.8125 inch |
| Dynamic (1) C1 | 159000N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 23700N |
| Dynamic (2) Ca90 | 16300N |
| Dynamic (2) C90(2) | 41300N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R(3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter db | 73mm = 2.87 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 104.5mm = 4.11 inch |
| G1 | 56 |
| G2 | 21.4 |
| Cg | 0.0984 |
