SKU: 3806.B.2Z.TVH.EU

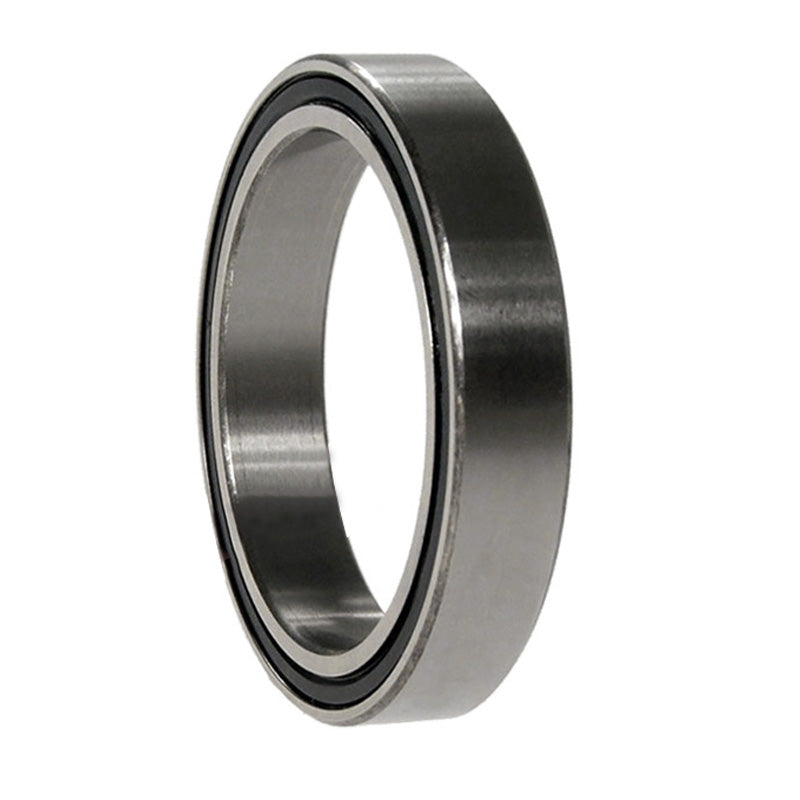

Budget 3806B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 30x42x10mm
Budget 3806B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 30x42x10mm
Equivalent to: 5806B2RSRTVH
Out of stock
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 42mm |
| B | 10mm |
| a | 18.1mm |
| d1 max | 32.8mm |
| Da max | 40mm |
| da min | 32mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.03 kg |
| Dynamic load Cr | 6300 N |
| Static load Cor | 6100 N |
| Fatigue limit load Cur | 320 N |
| Reference speed | 7000 rpm |
| Limiting Speed | 8700 rpm |
