SKU: 3802.B.2Z.TVH.EU

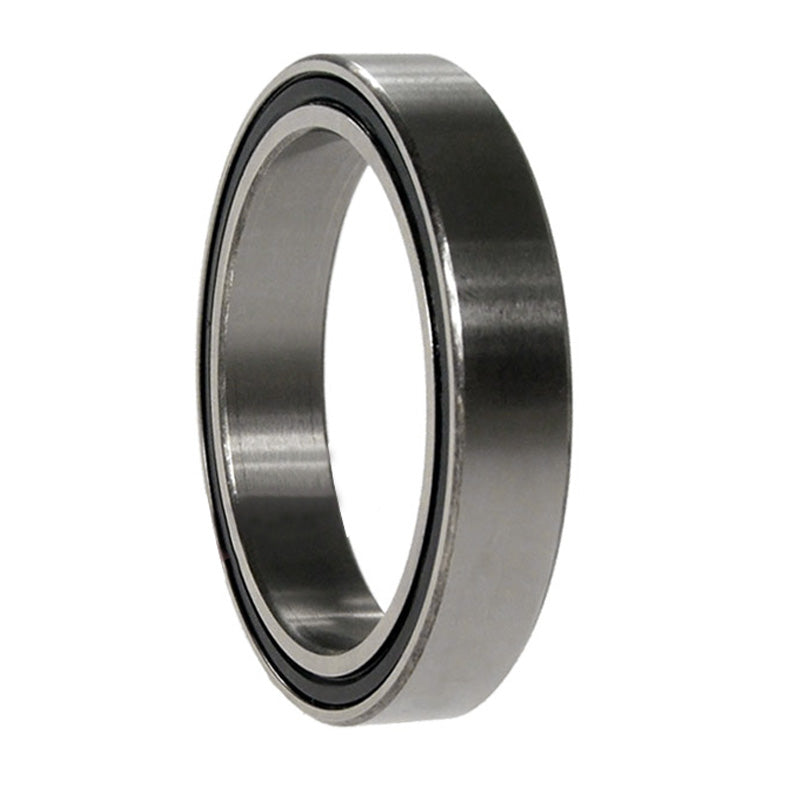

Budget 3802B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 15x24x7mm
Budget 3802B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 15x24x7mm
Equivalent to: 5802B2RSRTVH
Out of stock
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 7mm |
| a | 10.1mm |
| d1 max | 18mm |
| Da max | 22mm |
| da min | 17mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.009 kg |
| Dynamic load Cr | 2430 N |
| Static load Cor | 1960 N |
| Fatigue limit load Cur | 99 N |
| Reference speed | 14000 rpm |
| Limiting Speed | 14800 rpm |
