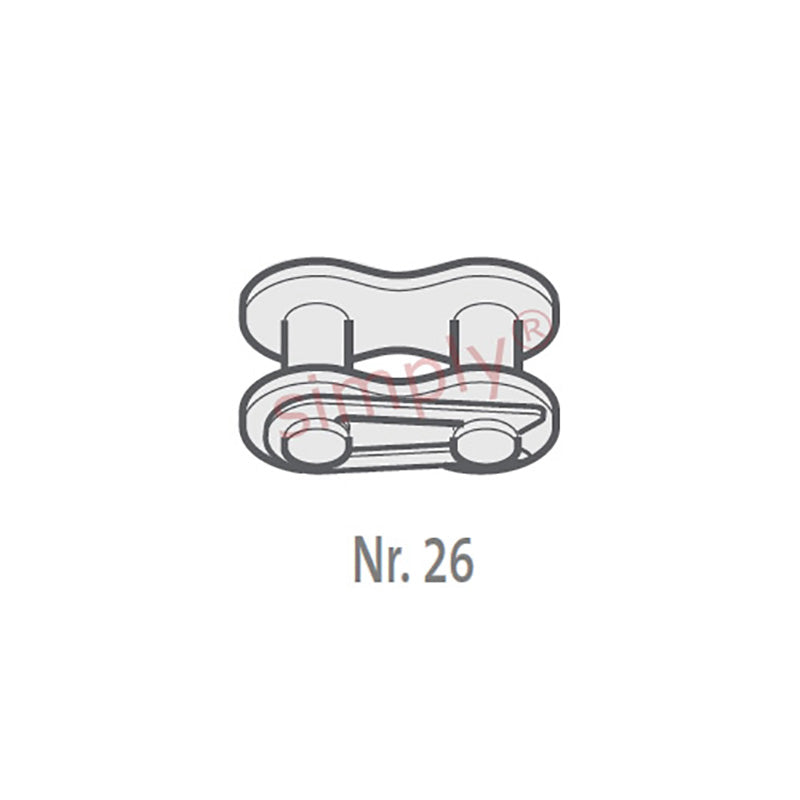

Branded 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Branded 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
$6.44
ex VAT
Regular price
Sale price
$6.44
ex VAT
Equivalent to: 35-1-CL
In stock
Price Break
2+
$3.05
5+
$2.88
10+
$2.84
29+
$2.81
49+
$2.78
75+
$2.74
100+
$2.57
200+
$2.54
250+
$2.50
500+
$2.47
1000+
$2.40
Quantity
Couldn't load pickup availability
Description
Description
Branded CL / No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.77mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.95mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 12.15mm |
| Connecting Link Extension max (J) | 0.949999999999999mm |
| ISO606 Tensile Strength min | 7900 N |
| Weight | 0.008kg/m |
