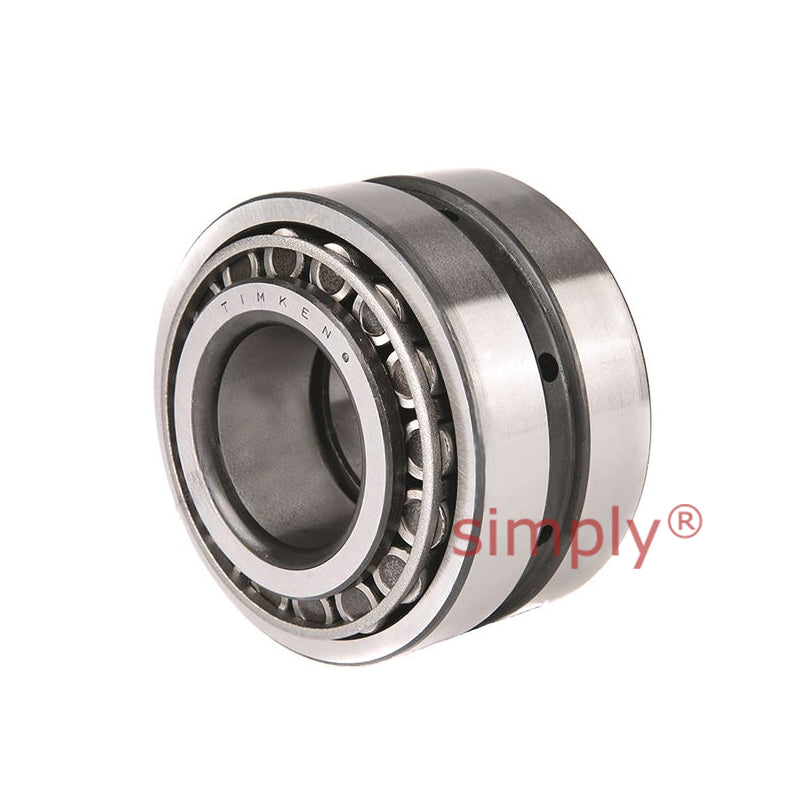

Timken 34306/34478D/X4S34306 TDO Double Outer Race Taper Roller Bearing 3.0625x4.7812x2.0626x1.5 inch
Timken 34306/34478D/X4S34306 TDO Double Outer Race Taper Roller Bearing 3.0625x4.7812x2.0626x1.5 inch
Out of stock
Description
Description

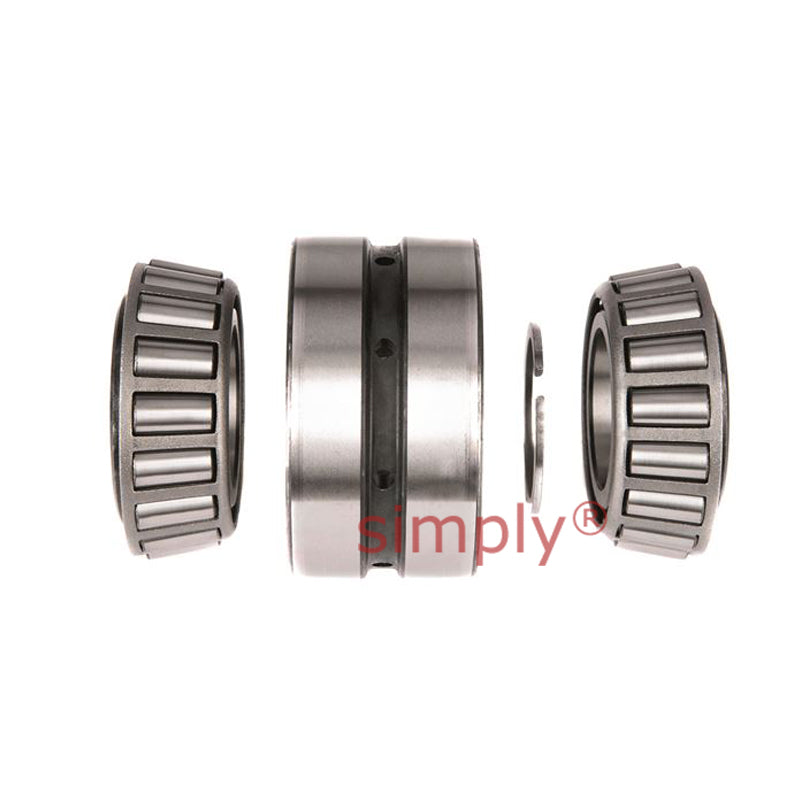

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 77.79mm = 3.0625 inch
- Outside Diameter:
- 121.44mm = 4.7812 inch
- Width:
- 52.39mm = 2.0626 inch
Technical
Technical
| d | 77.788mm = 3.0625 inch |
|---|---|
| D | 121.442mm = 4.7812 inch |
| T | 52.39mm = 2.0626 inch |
| C | 38.1mm = 1.5 inch |
| Dynamic (1) C1 | 165000N |
| Factors (5) e | 0.45 |
| Factors (5) Y1 | 1.5 |
| Factors (5) Y2 | 2.23 |
| Dynamic (2) C90 | 24500N |
| Dynamic (2) Ca90 | 18900N |
| Dynamic (2) C90(2) | 42700N |
| Factors (5) K | 1.3 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 90mm = 3.54 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 116mm = 4.57 inch |
| G1 | 69.3 |
| G2 | 27 |
| Cg | 0.1093 |
