SKU: 3311DMA/C3-SKF

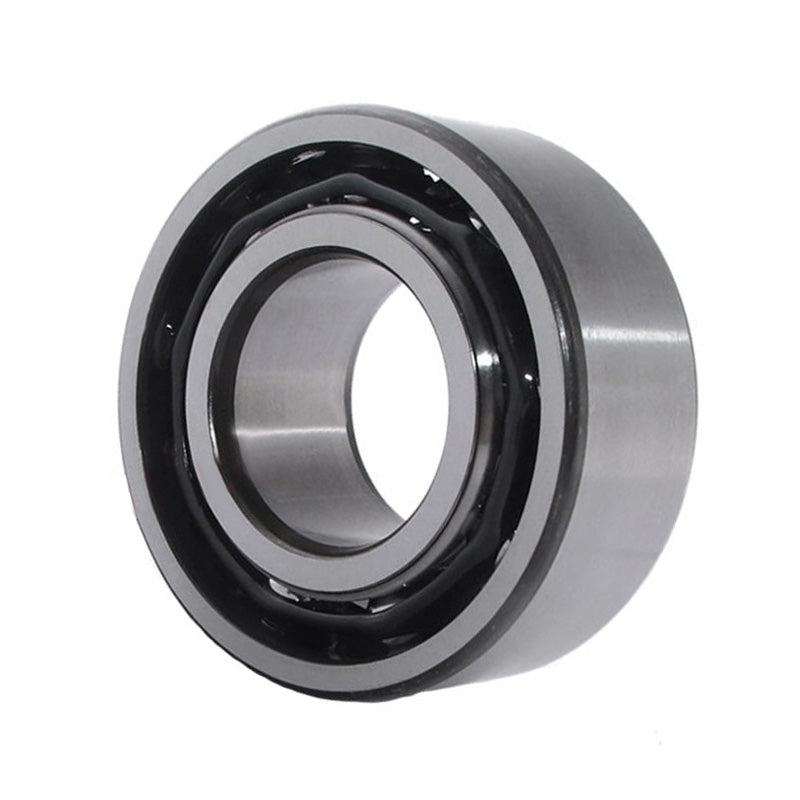

SKF 3311DMAC3 Double Row Angular Contact Ball Bearing Steel Cage 55x120x49.2mm
SKF 3311DMAC3 Double Row Angular Contact Ball Bearing Steel Cage 55x120x49.2mm
Equivalent to: 5311
Out of stock
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 49.2mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 49.2mm |
| Dynamic load Cr | 111 kN |
| Static load Cor | 100 kN |
| Fatigue load limit Pu | 4.3 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.8 kg |
| d1 | 81.3mm |
| D1 | 104.4mm |
| r1r2 min | 2mm |
| a | 114mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
