SKU: 32330UTG-NTN

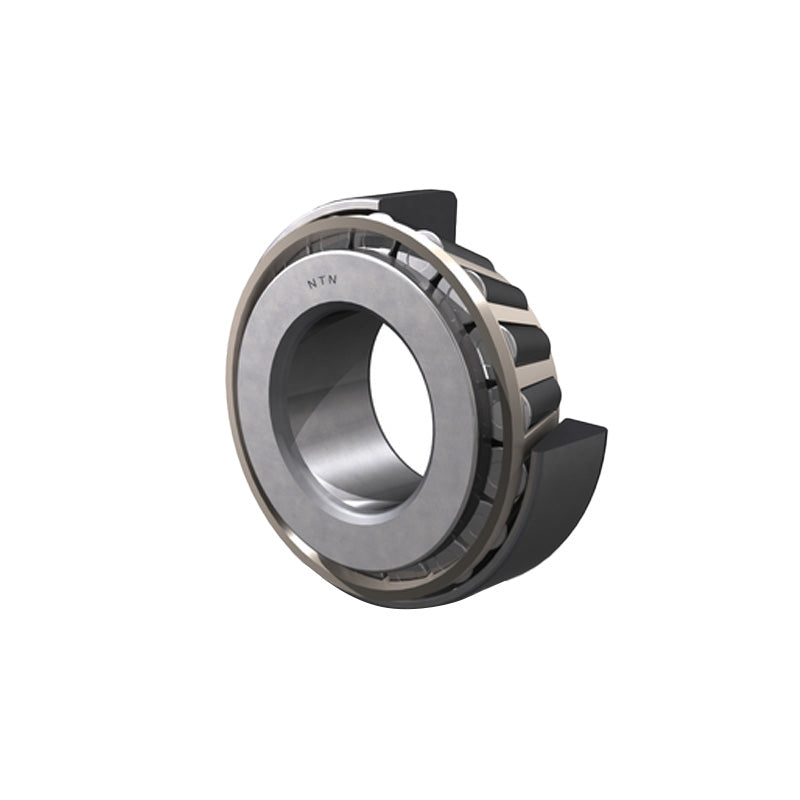

NTN 32330UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 150x320x114mm

NTN 32330UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 150x320x114mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 150mm
D 320mm
T 114mm
B 108mm
C 90mm
r<sub>s</sub> min 4mm
r<sub>ls</sub> min 4mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1490kN
Static load C<sub>or</sub> 1750kN
Fatigue Load limit C<sub>u</sub> 166kN
Allowable Speed in grease 1200rpm
Allowable Speed in oil 1700rpm
--- Abutment dimensions
d<sub>a</sub> min 168mm
d<sub>b</sub> max 182.5mm
D<sub>a</sub> max 302mm
D<sub>a</sub> min 254mm
D<sub>b</sub> min 298mm
S<sub>a</sub> min 4.3mm
S<sub>b</sub> min 24mm
r<sub>as</sub> max 3mm
r<sub>1as</sub> max 3mm
Load center a 80mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 42.1kg
