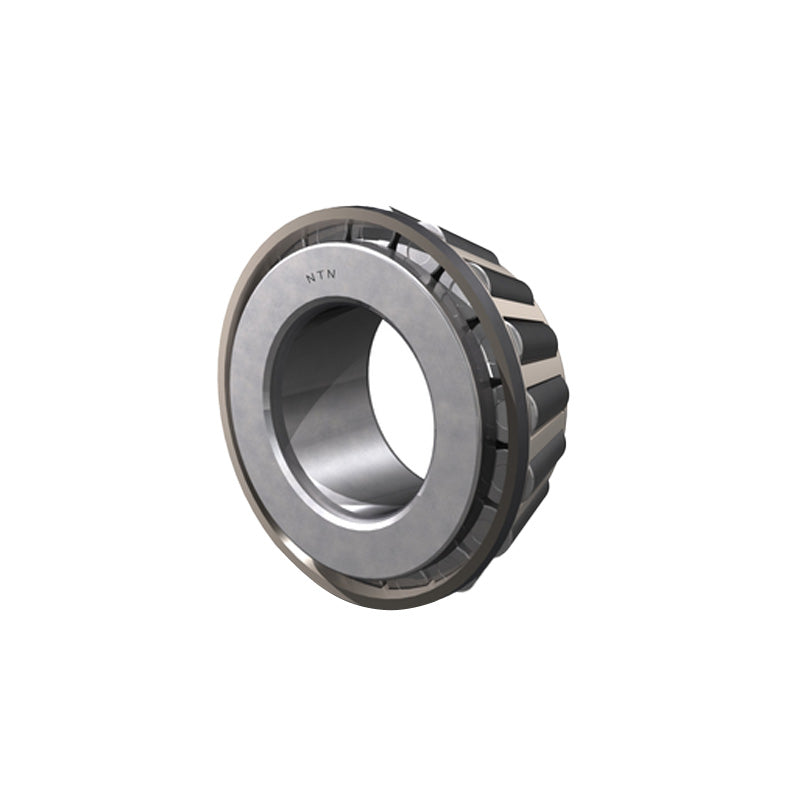

Major Brand 32214 Metric Taper Roller Bearing 70x125x33.3mm
Major Brand 32214 Metric Taper Roller Bearing 70x125x33.3mm
Regular price
$105.76
ex VAT
Regular price
Sale price
$105.76
ex VAT
In stock
Price Break
10+
$50.15
19+
$47.33
29+
$46.77
39+
$46.20
49+
$45.64
74+
$45.08
99+
$42.26
199+
$41.70
249+
$41.13
499+
$40.57
999+
$39.44
Quantity
Couldn't load pickup availability
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 33.3mm
- Seals / Shields:
- None
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| T | 33.25mm |
| Dynamic load | 157 kN |
| Static load | 208 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 5300 rpm |
| Mass | 1.6 kg |
| d1 | 95mm |
| B | 31mm |
| C | 27mm |
| r1r2 min | 2mm |
| r3r4 min | 1.5mm |
| a | 28mm |
| da max | 80mm |
| db min | 78mm |
| Da min | 108mm |
| Da max | 115mm |
| Db min | 119mm |
| Ca min | 4mm |
| Cb min | 6mm |
| ra max | 2mm |
| rb max | 1.5mm |
| e | 0.43 |
| Y | 1.4 |
| Y0 | 0.8 |
