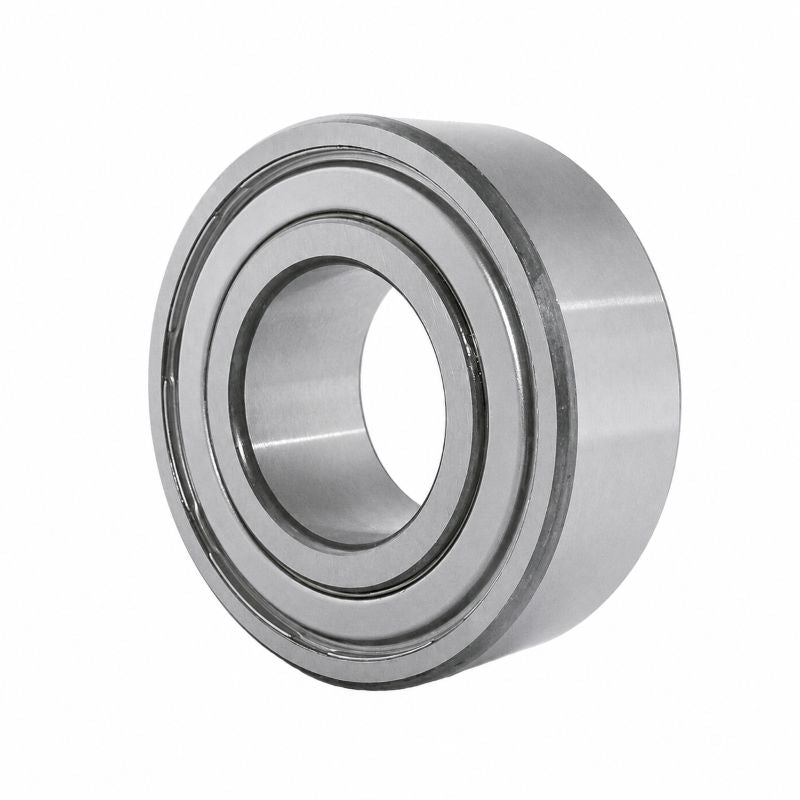

SKF 3202A2ZTN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 15x35x15.9mm

Name: SKF 3202A2ZTN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 15x35x15.9mm
Brand: SKF
SKU: 3202A-2ZTN9/C3MT33-SKF
Availability: OutOfStock

Equivalent to: 5202

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 35mm
Width:: 15.9mm
Seals / Shields:: None
Clearance:: C3

Technical

d	15mm
D	35mm
B	15.9mm
Dynamic load Cr	11.2 kN
Static load Cor	6.8 kN
Fatigue load limit Pu	0.285 kN
Max speed	18000 rpm
Weight	0.066 kg
d1	20.2mm
D1	30.7mm
r1r2 min	0.6mm
a	21mm
da min	19.4mm
da max	20mm
Da max	30.7mm
ra max	0.6mm
